进口循环管道泵

进口循环管道泵

  • :
  • :
  • :
  • :
  • :
  • :
  • Share :

一、进口循环管道泵产品概述

美国尼科NICO进口循环管道泵是结合本公司多年生产经验而设计的新一代产品。该系列产品设计方案通过CFD流体仿真模拟分析技术优化水力设计，水力效率更高。机械密封采用耐高温橡胶，提升机封的耐高温能力及降低老化速度。“O"形密封圈采用三元乙丙、聚四氟乙烯等材料，整体提升了密封件的使用寿命。广泛适用于循环热水泵、耐高温循环泵、腐蚀性化工循环泵、循环油泵。该产品具有高效节能、嗓音低、耐腐蚀性能可靠，运行稳定等优点。IRG型立式管道循环泵（冷水、热水）广泛适用于：能源、冶金、化工、纺织、造纸，以及宾馆饭店等锅炉高温热水增压循环输送及城市采用暖系统循环用泵，使用温度T<120℃。该系列产品的特点为结构紧凑，零配件种类少，使用和维修方便。

二、进口循环管道泵选型参数

公称通径：25-500(mm)

流量范围：1.1-1450(m3/h)

扬程范围：7-150(m)

功率范围：0.75～55KW

转速范围：720-2900r/min

额定电压：DC24v、220v、380v，660v，1140v（DC、AC）

温度范围：-20℃～120℃

工作压力：≤1.6Mpa-2.0Mpa

泵体材质：铸铁、WCB、304、316

三、进口循环管道泵主要特点

1、进口循环管道泵为立式结构，进出口口径相同、且位于同一中心线上，可像阀门一样安装于管路之中，设有安装底脚，增加泵的稳定性，外形紧凑美观，占地面积小，建筑投入低。

2、进口循环管道泵叶轮直接安装在电机的加长轴上，轴向尺寸短，结构紧凑，泵与电机轴承配置合理，能有效地平衡泵运转产生的径向和轴向负荷，从而保证了泵的运行平稳，震动噪音低。

3、进口循环管道泵轴封采用机械密封或机械密封组合，采用进口钛合金密封环、中型耐高温机械密封和采用硬质合金材质，耐磨密封，能有效地增长机械密封的使用寿命。

4、进口循环管道泵安装检修方便，无需拆动管路系统，只需卸下泵联体螺母即可抽出全部转子部件。

5、进口循环管道泵可根据使用要求即流量和扬程的需要采用泵的串、并联运行方式。

6、进口循环管道泵可根据管路布置的要求采用泵的竖式和横式安装。

四、进口循环管道泵应用领域

•适用于工业、城市给水、高层建筑供水；

•消防管道增压；

•冷暖空调冷热水循环；

•远距离输水；

•生产工艺循环增压输送，并适用于各种给排水设备、锅炉等设备的配套使用；

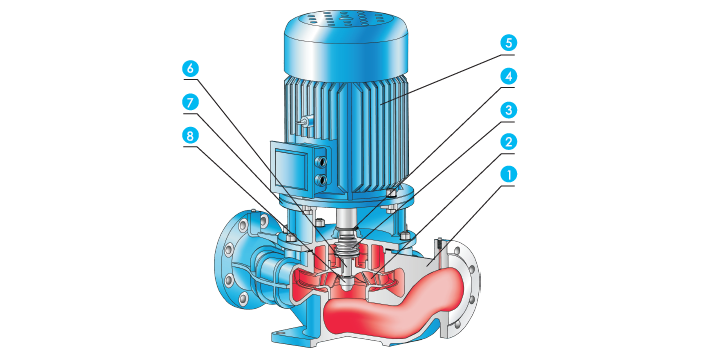

五、进口循环管道泵结构图


六、进口循环管道泵主要配件表

1泵体HT2004挡水圈橡胶7泵盖HT200
2叶轮HT2005电机泵盖8叶轮螺母HT200或12Cr18Ni9

七、进口循环管道泵性能参数

型 号流量扬程
(m)		效率
(%)		转速
(r/min)		电机功率
(kw)		汔蚀余量
(NPSH)r		重量
(kg)
m3/hL/s
15-801.1
1.5
2.0		0.3
0.42
0.55		8.5
8
7		26
34
34		28000.182.317
20-1101.8
2.5
3.3		0.5
0.69
0.91		16
15
13.5		25
34
35		28000.372.325
20-1601.8
2.5
3.3		0.5
0.69
0.91		33
32
30		19
25
23		29000.752.329
25-1102.8
4
5.2		0.78
1.11
1.44		16
15
13.5		34
42
41		29000.552.326
25-1252.8
4
5.2		0.78
1.11
1.44		20.6
20
18		28
36
35		29000.752.328
25-125A2.5
3.6
4.6		0.69
1.0
1.28		17
16
14.4		3529000.552.327
25-1602.8
4
5.2		0.78
1.11
1.44		33
32
30		24
32
33		29001.52.339
25-160A2.6
3.7
4.9		0.12
1.03
1.36		29
28
26		3129001.12.334
32-1004.512.512.54429000.552.027
32-100(I)4.4
6.3
8.3		1.22
1.75
2.32		13.2
12.5
11.3		48
54
53		29000.752.032
32-1253.5
5
6.5		0.97
1.39
1.8		22
20
18		40
44
42		29000.752.328
32-125A3.1
4.5
5.8		0.86
1.25
1.61		17.6
16
14.4		4329000.552.328
32-1606.55324429001.52.339
32-160A41.1253429001.12.038
32-160(I)4.4
6.3
8.3		1.22
1.75
2.32		33.2
32
30.2		34
40
42		29002.22.04.7
32-2004.512.55032290032.055
32-200(I)4.4
6.3
8.3		1.22
1.75
2.32		50.5
50
48		26
33
35		290042.043
32-200A2.8
4
5.2		0.78
1.11
1.44		44.6
44
42.7		34
40
42		29002.22.074
40-1004.4
6.3
8.3		1.22
1.75
2.31		13.2
12.5
11.3		48
54
53		29000.552.332
40-100A3.9
5.6
7.4		1.08
1.56
2.06		10.6
10
9		5229000.372.332
40-1254.4
6.3
8.3		1.22
1.75
2.31		21
20
18		41
46
43		29001.12.334
40-125A3.9
5.6
7.4		1.08
1.56
2.06		17.6
16
14.4		40
45
41		29000.752.333
40-1604.4
6.3
8.3		1.22
1.75
2.31		33
32
30		35
40
40		29002.22.347
40-160A4.1
5.9
7.8		1.14
1.64
2.17		29
28
26.3		34
39
39		29001.52.343
40-160B3.8
5.5
7.2		1.06
1.53
2.0		25.5
24
22.5		34
38
37		29001.12.338
40-2004.4
6.3
8.3		1.22
1.75
2.31		51
50
48		26
33
32		29004.02.374
40-200A4.1
5.9
7.8		1.14
1.64
2.17		45
44
42		26
31
30		29003.02.362
40-200B3.7
5.3
7.0		1.03
1.47
1.94		38
36
34.5		2929002.22.352
40-2504.4
6.3
8.3		1.22
1.75
2.31		82
80
74		24
28
28		29007.52.3105
40-250A4.1
5.9
7.8		1.14
1.64
2.17		72
70
65		24
28
27		29005.52.398
40-250B3.8
5.5
7.0		1.06
1.53
1.94		61.5
60
56		23
27
26		29004.02.377
40-100(I)8.8
12.5
16.3		2.44
3.47
4.53		13.2
12.5
11.3		55
62
60		29001.12.334
40-100(I)A8
11
14.5		2.22
3.05
4.03		10.6
10
9		6029000.752.332
40-125(I)8.8
12.5
16.3		2.44
3.47
4.53		21.2
20
17.8		49
58
57		29001.52.338
40-125(I)A8
11
14.5		2.22
3.05
4.03		17
16
14		5729001.12.333
40-160(I)8.8
12.5
16.3		2.44
3.47
4.53		33
32
30		45
52
51		29003.02.356
40-160(I)A8.2
11.7
15.2		2.28
3.25
4.22		29
28
26		44
51
50		29002.22.347
40-160(I)B7.3
10.4
13.5		2.38
2.89
3.75		23
22
20.5		5029001.52.343
40-200(I)8.8
12.5
16.3		2.44
3.47
4.53		51.2
50
48		38
46
46		29005.52.385
40-200(I)A8.3
11.7
15.3		2.31
3.25
4.25		45.0
44
42		37
45
45		29004.02.375
40-200(I)B7.5
10.6
13.8		2.08
2.94
3.83		37
36
34		44290032.363
40-250(I)8.8
12.5
16.3		2.44
3.47
4.53		81.2
80
77.5		31
38
40		2900112.3145
40-250(I)A8.2
11.6
15.2		2.28
3.22
4.22		71.0
70
68		3829007.52.395
40-250(I)B7.6
10.8
14		2.11
3.0
3.89		61.4
60
58		3729005.52.394
40-250(I)C7.1
10.0
13.1		1.97
2.78
3.64		53.2
52
50.4		3629005.52.388
50-1008.8
12.5
16.3		2.44
3.47
4.53		13.6
12.5
11.3		55
62
60		29001.12.336
50-100A8
11
14.5		2.22
3.05
4.03		11
10
9		6029000.752.335
50-1258.8
12.5
16.3		2.44
3.47
4.53		21.5
20
17.8		49
58
57		29001.52.343
50-125A8
11
14.5		2.22
3.05
4.03		17
16
14		5729001.12.338
50-1608.8
12.5
16.3		2.44
3.47
4.53		33
32
30		45
52
30		29003.02.359
50-160A8.2
11.7
15.2		2.28
3.25
4.22		29
28
26		44
51
50		29002.22.351
50-160B7.3
10.4
13.5		2.38
2.89
3.75		23
22
20.5		5029001.52.347
50-2008.8
12.5
16.3		2.44
3.47
4.53		52
50
48		38
46
46		29005.52.3101
50-200A8.3
11.7
15.3		2.31
3.25
4.25		45.8
44
42		37
45
45		29004.02.380
50-200B7.5
10.6
13.8		2.08
2.94
3.83		37
36
34		44290032.368
50-2508.8
12.5
16.3		2.44
3.47
4.53		82
80
77.5		29
38
40		2900112.3160
50-250A8.2
11.6
15.2		2.28
3.22
4.22		71.5
70
68		3829007.52.3115
50-250B7.6
10.8
14		2.11
3.0
3.89		61.4
60
58		3729005.52.3114
50-250C7.1
10.0
13.1		1.97
2.78
3.64		53.2
52
50.4		3629005.52.3108
50-100(I)17.5
25
32.5		4.86
6.94
9.03		13.7
12.5
10.5		67
69
69		29001.52.541
50-100(I)A15.6
22.3
29		4.3
6.19
8.1		11
10
8.4		65
67
68		29001.12.536
50-125(I)17.5
25
32.5		4.86
6.94
9.03		21.5
20
18		60
68
67		29003.02.556
50-125(I)A15.6
22.3
29		4.33
6.19
8.1		17
16
13.6		58
66
65		29002.22.548

八、进口循环管道泵性能参数

型 号流量扬程
(m)		效率
(%)		转速
(r/min)		电机功率
(kw)		汔蚀余量
(NPSH)r		重量
(kg)
m3/hL/s
50-160(I)17.5
25
32.5		4.68
6.94
9.03		34.4
32
27.5		54
63
60		29004.02.572
50-160(I)A16.4
23.4
30.4		4.56
6.5
8.44		30
28
24		54
62
59		29003.02.571
50-160(I)B15.0
21.6
28		4.17
6.0
7.78		26
24
20.6		5829002.22.559
50-200(I)17.5
25
32.5		4.86
6.94
9.03		52.7
50
45.5		49
58
59		29007.52.5108
50-200(I)A16.4
23.5
30.5		4.56
6.53
8.47		46.4
44
40		48
57
58		29005.52.5107
50-200(I)B15.2
21.8
28.3		4.22
6.06
7.86		40
38
34.5		55290042.5100
50-250(I)17.5
25
32.5		4.86
6.94
9.03		82
80
76.5		39
50
52		290015.02.5175
50-250(I)A16.4
23.4
30.5		4.56
6.5
8.47		71.5
70
67		39
50
52		290011.02.5165
50-250(I)B15
21.6
28		4.17
6.0
7.78		61
60
57.4		38
49
54		29007.52.5165
50-315(I)17.5
25
32.5		4.86
6.94
9.03		128
125
122		30
40
44		290030.02.5310
50-315(I)A16.6
23.7
31		4.61
6.58
8.6		115
113
110		30
40
44		2900222.5245
50-315(I)B15.7
22.5
29.2		4.36
6.25
8.0		103
101
98		39290018.52.5215
50-315(I)C14.4
20.6
26.8		4.0
5.72
7.44		86
85
83		38290015.02.5195
65-10017.5
25
32.5		4.86
6.94
9.03		13.7
12.5
10.5		67
69
69		29001.52.546
65-100A15.6
22.3
29		4.3
6.19
8.1		11
10
8.4		65
67
68		29001.12.541
65-12517.5
25
32.5		4.86
6.94
9.03		21.6
20
18		60
68
67		290032.558
65-125A15.6
22.3
29		4.33
6.19
8.1		17
16
14.4		58
66
65		29002.22.549
65-16017.5
25
32.5		4.86
6.94
9.03		34.4
32
27.5		54
63
60		29004.02.575
65-160A16.4
23.4
30.4		4.56
6.5
8.44		30
28
24		54
62
59		290032.575
65-160B15.0
21.6
28		4.17
6.0
7.78		26
24
20.6		5829002.22.563
65-20017.5
25
32.5		4.86
6.94
9.03		52.7
50
45.5		49
58
59		29007.52.5107
65-200A16.4
23.5
30.5		4.56
6.53
8.47		46.4
44
40		48
57
58		29005.52.5107
65-200B15.2
21.8
28.3		4.22
6.06
7.86		40
38
34.5		55290042.5100
65-25017.5
25
32.5		4.86
6.94
9.03		82
80
76.5		39
50
52		2900152.5180
65-250A16.4
23.4
30.5		4.56
6.5
8.47		71.5
70
67		39
50
52		2900112.5170
65-250B15
21.6
28		4.17
6.0
7.78		61
60
57.4		38
49
54		29007.52.5170
65-31517.5
25
32.5		4.86
6.94
9.03		127
125
122		32
40
44		2900302.5320
65-315A16.6
23.7
31		4.61
6.58
8.6		115
113
110		32
40
44		2900222.5255
65-315B15.7
22.5
29.2		4.36
6.25
8.0		103
101
98		39290018.52.5225
65-315C14.4
20.6
26.8		4.0
5.72
7.44		86
85
83		382900152.5205
65-100(I)35
50
65		9.72
13.9
18.1		13.8
12.5
10		67
73
70		290033.063
65-100(I)A31.3
44.7
58		8.7
12.4
16.1		11
10
8		66
72
69		29002.23.053
65-125(I)35
50
65		9.72
13.9
18.1		22
20
17		67
72.5
70		29005.53.099
65-125(I)A31.3
45
58		8.7
12.5
16.1		17.5
16
13.6		66
71
69		290043.078
65-160(I)35
50
65		9.72
13.9
18.1		35
32
28		63
71
70		29007.53.0103
65-160(I)A32.7
46.7
61		9.1
13
16.9		30.6
28
24		62
70
69		29005.53.0103
65-160(I)B30.3
43.3
56.3		8.4
12.0
15.6		26
24
21		69290043.097
65-200(I)35
50
65		9.72
13.9
18.1		53.5
50
46		55
67
68		2900153.0176
65-200(I)A32.8
47
61		9.1
13.1
16.9		47
44
40		54
66
67		2900113.0166
65-200(I)B30.5
43.5
56.6		8.5
12.1
15.7		40.6
38
33.4		6529007.53.0114
65-250(I)35
50
65		9.72
13.9
18.1		83
80
72		52
59
60		2900223.0235
65-250(I)A32.5
46.7
61		9.0
13.0
16.9		73
70
63		52
59
60		290018.53.0205
65-250(I)B30
43.3
56		8.3
12
15.6		62
60
54		582900153.0180
65-315(I)35
50
65		9.72
13.9
18.1		128
125
121		44
54
57		2900373.0350
65-315(I)A32.5
46.5
60.5		9.0
12.9
16.8		112.6
110
106.4		43
54
57		2900303.0335
65-315(I)B31
44.5
58		8.6
12.4
16.1		102.5
100
98		532900303.0335
65-315(I)C29
41
53.6		8.1
11.4
14.9		87
85
83		512900223.0270
80-10035
50
65		9.72
13.9
18.1		13.8
12.5
10		67
73
70		290033.063
80-100A31.3
44.7
58		8.7
12.5
16.1		11
10
8		66
72
69		29002.23.054
80-12535
50
65		9.72
13.9
18.1		22
20
17		67
72.5
70		29005.53.099
80-125A31.3
45
58		8.7
12.5
16.1		17.5
16
13.6		66
71
69		290043.079

九、进口循环管道泵性能参数

型 号流量扬程
(m)		效率
(%)		转速
(r/min)		电机功率
(kw)		汔蚀余量
(NPSH)r		重量
(kg)
m3/hL/s
80-16035
50
65		9.72
13.9
18.1		35
32
28		63
71
70		29007.53.0105
80-160A32.7
46.7
61		9.1
13.0
16.9		30.6
28
24		62
70
69		29005.53.0105
80-160B30.3
43.3
56.3		8.4
12.0
15.6		26
24
21		69290043.098
80-20035
50
65		9.72
13.9
18.1		53.5
50
46		55
67
68		2900153.0175
80-200A32.8
47
61		9.1
13.1
16.9		47
44
40		54
66
67		2900113.0165
80-200B30.5
43.5
56.6		8.5
12.1
15.7		40.6
38
33.4		6529007.53.0115
80-25035
50
65		9.72
13.9
18.1		83
80
72		52
59
60		2900223.0240
80-250A32.5
46.7
61		9.0
13.0
16.9		73
70
63		52
59
60		290018.53.0210
80-250B30
43.3
56		8.3
12.0
15.6		62
60
54		582900153.0185
80-31535
50
65		9.72
13.9
18.1		128
125
122		43
54
57		2900373.0355
80-315A32.5
46.5
60.5		9.0
12.9
16.8		112.6
110
107.4		43
54
57		2900303.0340
80-315B31
44.5
58		8.6
12.4
16.1		102.5
100
98		532900303.0340
80-315C29
41
53.6		8.1
11.4
14.9		98
85
83		512900223.0275
80-35035
50
65		9.72
13.9
18.1		146
150
142		55
66
67		2900553.0570
80-350A31
44.5
58		8.6
12.4
16.1		138.4
142
134.8		652900453.0470
80-350B29
41
53.6		8.1
11.4
14.9		131.4
135
127.8		632900373.0440
80-100(I)70
100
130		19.4
27.8
36.1		13.6
12.5
11		66
76
75		29005.54.5108
80-100(I)A62.6
89
116		17.4
24.7
32.2		11
10
8.8		64
74
74		290044.587
80-125(I)70
100
130		19.4
27.8
36.1		23.5
20
14		70
76
65		2900114.5163
80-125(I)A62.6
89
116		17.4
24.7
32.2		19
16
11		68
74
65		29007.54.5113
80-160(I)70
100
130		19.4
27.8
36.1		36.5
32
24		70
76
65		2900154.5184
80-160(I)A65.4
93.5
121.6		18.2
26.0
33.8		32
28
21		68
74
67		2900114.5174
80-160(I)B60.6
86.6
112.5		16.8
24.1
31.3		72
24
18		7229007.54.5174
80-200(I)70
100
130		19.4
27.8
36.1		54
50
42		65
74
73		2900224.0251
80-200(I)A65.4
93.5
121.6		18.2
26.0
33.8		47.5
44
37		67
73
72		290018.54.0220
80-200(I)B61
87
113		16.9
24.2
31.4		41
38
32		712900154.0198
80-250(I)70
100
130		19.4
27.8
36.1		87
80
68		62
69
68		2900374.0330
80-250(I)A65.4
93.5
121.6		18.2
26.0
33.8		76
70
59.5		61
68
67		2900304.0315
80-250(I)B61
87
113		16.9
24.2
31.4		65
60
51		662900224.0315
80-315(I)70
100
130		19.4
27.8
36.1		132
125
114		55
66
67		2900754.0675
80-315(I)A66.5
95
123.6		18.5
26.4
34.3		119
113
103		55
66
67		2900554.0535
80-315(I)B63
90
117		17.5
25
32.5		106.6
101
92		652900454.0420
80-315(I)C58
82
107		16.1
22.8
29.7		90
85
76		632900374.0366
100-10070
100
130		19.4
27.8
36.1		13.6
12.5
11		66
76
75		29005.54.5113
100-100A62.6
89
116		17.4
47
32.2		11
10
8.8		64
74
74		290044.591
100-12570
100
130		19.4
27.8
36.1		23.5
20
14		70
76
65		2900114.5169
100-125A62.6
89
116		17.4
24.7
32.2		19
16
11		68
74
63		29007.54.5118
100-16070
100
130		19.4
27.8
36.1		36.5
32
24		70
76
65		2900154.5191
100-160A65.4
93.5
121.6		18.2
26.0
33.8		32
28
21		68
74
67		2900114.5181
100-160B60.6
86.6
112.5		16.8
24.1
31.3		27
24
18		7229007.54.5181
100-20070
100
130		19.4
27.8
36.1		54
50
42		65
74
73		2900224.0245
100-200A65.4
93.5
121.6		18.2
26.0
33.8		47.5
44
37		64
73
72		290018.54.0215
100-200B61
87
113		16.9
24.2
31.4		41
38
32		712900154.0193
100-25070
100
130		19.4
27.8
36.1		87
80
68		62
69
68		2900374.0345
100-250A65.4
93.5
121.6		18.2
26.0
33.8		76
70
59.5		61
68
67		2900304.0330
100-250B61
87
113		16.9
24.2
31.4		65
60
51		662900334.0330
100-31570
100
130		19.4
27.8
36.1		132
125
114		55
66
67		2900754.0689
100-315A66.5
95
123.6		18.5
26.4
34.3		119
113
103		65
66
67		2900554.0549
100-315B63
90
117		17.5
25
32.5		106.6
101
92		652900454.0439
100-315C58
82
107		16.1
22.8
29.7		90
85
76		632900374.0385
100-100(I)96
160
192		26.7
44.4
53.3		14
12.5
10		64
73
70		2900114.5115
100-125(I)96
160
192		26.7
44.4
53.3		24
20
14		62
74
69		2900154.5168
100-125(I)A84
140
168		23.3
39
46.7		20
17
12		64
72
68		2900114.5168
100-160(I)96
160
192		26.7
44.4
53.3		36
32
27		69
79
75		2900225.6210
100-160(I)A84
140
168		23.3
39
46.7		32
28
23.5		66
76
72		290018.55.0210
100-200(I)96
160
192		26.7
44.4
53.3		53
50
45		69
79
78		2900375.2402
100-200(I)A84
140
168		23.3
39
46.7		48
45
40		64
74
73		2900304.5395
100-200(I)B60
100
120		16.7
27.8
33.3		43
40
36		722900224.5360
100-250(I)96
160
192		26.7
44.4
53.3		83
80
72		65
77
74		2900554.8560
100-250(I)A84
140
168		23.3
39
46.7		75
72
65		60
72
69		2900454.5420
100-250(I)B60
100
120		16.7
27.8
33.3		68
65
58		702900374.5400
100-35060
100
120		16.7
27.8
33.3		153.6
150
142		72
57
74		2900904.0950
100-350A61
87
113		16.9
24.2
31.4		145.6
142
134		752900754.0830

十、进口循环管道泵性能参数

型 号流量扬程
(m)		效率
(%)		转速
(r/min)		电机功率
(kw)		汔蚀余量
(NPSH)r		重量
(kg)
m3/hL/s
100-350B58
82
107		16.1
22.8
29.7		138.6
135
127		752900554.0600
125-10096
160
192		26.7
44.4
53.3		13
12.5
12		822900114.0180
125-100A86
143
172		23.9
39.7
47.8		10.4
10
9.6		7729007.54.0125
125-12596
160
192		26.7
44.4
53.3		22.6
20
17		802900154.0220
125-125A86
143
172		23.9
39.7
47.8		18
16
13.6		772900114.0210
125-16096
160
192		26.7
44.4
53.3		36
32
28		782900224.0265
125-160A90
150
180		25
41.7
50		31.5
28
24.5		76290018.54.0230
125-160B83
138
166		21.7
38.3
46.1		27
24
21		732900154.0215
125-20096
160
192		26.7
44.4
53.3		55
50
46		772900375.5395
125-200A90
150
180		25
41.7
50		48.4
44
40.5		762900305.5380
125-200B83
138
166		21.7
38.3
46.1		41.3
37.5
34.5		752900225.5320
125-25096
160
192		26.7
44.4
53.3		87
80
73		752900555.0580
125-250A90
150
180		25
41.7
50		76
70
84		742900455.5490
125-250B83
138
166		21.7
38.3
46.1		65
60
55		732900375.5430
125-31596
160
192		26.7
44.7
53.3		133
125
119		702900905.0790
125-315A90
150
180		25
41.7
50		117
110
104.6		702900755.0710
125-315B86
143
172		23.9
39.7
47.8		106.4
100
95.2		692900755.0705
125-315C80.5
134
161		22.4
37.2
44.7		96
88
86		672900555.0585
150-12596
160
192		26.7
44.4
53.3		22.6
24
17		66
76
76		2900114.0210
150-125A90
150
180		25
41.7
50		18
16
13.6		7729007.54.0130
150-16096
160
192		26.7
44.4
53.3		36
32
27		752900224.0270
150-160A90
150
180		25
41.7
50		32
28
23.5		76290018.54.0230
150-160B84
140
168		23.3
39
46.7		27
24
21		732900154.0220
150-200140
200
260		38.9
55.6
72.2		13.8
12.5
10.6		68
78
78		1450153.0265
150-200A125
176
232.5		34.7
49.7
64.6		11
10
8.5		66
76
76		1450113.0244
150-200B84
140
168		23.3
39
46.7		41
38
34		752900224.0275
150-250140
200
260		38.9
55.6
72.2		21.8
20
17		73
79
77		145018.53.0300
150-250A129
184.4
240		35.8
51.2
66.7		18.5
17
14.4		72
78
76		1450153.0262
150-250B117
167
217.5		32.5
46.4
60.4		15.2
14
12		761450113.0241
150-315140
200
260		38.9
55.6
72.2		33.8
32
28		70
78
73		1450302.5410
150-315A131
187
243		36.4
51.9
67.5		29.5
28
24.5		69
77
77		1450223.5335
150-315B121
173
225		33.5
48.1
62.5		25
24
21		76145018.53.5315
150-35096
160
192		26.7
44.4
53.3		153.6
150
142.8		8029001105.5970
150-350A90
150
180		25
41.7
50		145.6
142
134.8		702900905.2790
150-350B84
140
168		23.3
39
46.7		138.8
135
127.8		65
76
74		2900755.5705
150-400140
200
260		38.9
55.6
72.2		53
50
44		68
75
71		1450453.5490
150-400A131
187
243		36.4
51.9
67.5		46.6
44
38.3		67
74
70		1450373.5454
150-400B122
174
226.5		33.9
48.3
62.9		40
38
33		731450303.5435
150-400C112
160
208		31.1
44.4
57.8		34
32
28		711450223.5365
150-250(I)120
200
240		33.3
55.6
66.7		87
80
72		65
76
74		2900754.5702
150-250(I)A112
187
224		31.1
51.9
62.2		76
70
63		64
75
73		2900554.5561
150-250(I)B104
173
208		28.9
48.1
57.8		65
60
54		63
74
72		2900454.5460
150-315(I)120
200
240		33.3
55.6
66.7		133
125
120		58
73
75		29001104.5980
150-315(I)A112
187
224		31.1
51.9
62.2		116
110
105		57
72
74		2900904.5800
150-315(I)B104
173
208		28.9
48.1
57.8		100
95
91		55
70
72		2900754.5724
200-200140
200
260		38.9
55.6
72.2		13.8
12.5
10.6		68
78
78		1450153.0265
200-200A125
179
232.5		34.7
49.7
64.6		11
10
8.5		66
76
76		1450113.0244
200-250140
200
260		38.9
55.6
72.2		21.8
20
17		73
79
77		145018.53.0305
200-250A129
184.4
240		35.8
51.2
66.7		18.5
17
14.4		72
78
76		1450153.0267
200-250B117
167
217.5		32.5
46.4
60.4		15.2
14
12		761450113.0246
200-315140
200
260		38.9
55.6
72.2		33.8
32
28		70
78
78		1450303.5417
200-315A131
189
243		36.4
51.9
67.5		29.5
28
24.5		69
77
77		1450223.5342
200-315B121
173
225		33.6
48.1
62.5		25
24
21		76145018.53.5322
200-400140
200
260		38.9
55.6
72.2		53
50
44		68
75
71		1450453.5498
200-400A131
187
243		36.4
51.9
67.5		46.6
44
38.3		67
74
70		1450373.5462
200-400B122
174
226.5		33.9
48.5
62.9		40
38
33		731450303.5443
200-400C112
160
208		31.3
44.4
57.8		34
32
28		711450223.5373
200-200(I)280
400
520		77.8
111.1
144		13.4
12.5
10.5		70
80
79		1450224.0382
200-200(I)A250
358
465		69.4
90.4
129.2		10.7
10
8.5		68
78
77		145018.54.0346
200-250(I)280
400
520		77.8
111.1
144		22.2
20
14		75
80
72		1450304.0475
200-250(I)A250
358
465		69.4
99.4
129.2		18
14
11.2		73
78
70		1450204.0405
200-250(I)B226
322
419		62.8
89.4
116.4		14.4
13
7.3		70
75
67		145018.54.0387
200-315(I)280
400
520		77.8
111.4
144		36
32
26		73
80
75		1450554.0675

十一、进口循环管道泵

型 号流量扬程
(m)		效率
(%)		转速
(r/min)		电机功率
(kw)		汔蚀余量
(NPSH)r		重量
(kg)
m3/hL/s
200-315(I)A262
374
486		72.8
103.9
135		31.5
28
23		72
79
74		1450454.0560
200-315(I)B242
346
450		67.2
96.1
125		27
24
19.5		781450374.0535
200-400(I)280
400
520		77.8
111.4
144		54.5
50
39		75
81
77		1450754.0830
200-400(I)A262
374
486		72.8
103.9
135		48
44
34		801450754.0830
200-400(I)B242
346
450		67.2
96.1
125		41.4
38
29.6		781450555.0685
200-400(I)C224
320
416		62.2
88.9
115.6		34.9
32
25		761450455.0580
250-250350
550
650		97.2
152.8
180.5		22
20
16		78
82
81		1450455.0620
250-250A300
500
600		18.3
139
166.7		18.3
17
14		76
80
80		1450375.0550
250-235300
500
600		83.3
139
166.7		14
12.5
11		73
78
70		1480224.5410
250-300300
500
600		83.3
139
166.7		22
20
16		781480374.5550
250-315350
550
650		97.2
152.8
180.5		34
32
28		76
80
79		1450755.5890
250-315A300
500
600		83.3
139
166.7		29.5
28
24		74
78
77		1450555.5690
250-315B260
450
520		72.2
125
144.4		25
24
20		70
74
72		1450455.5620
250-400300
500
600		83.3
139
166.7		54.5
50
39		721480904.51530
300-235540
720
900		150
200
250		20.5
18
15.0		77
81
74		1450555.01075
300-235A450
600
720		125
166
200		17.2
15
12.5		74
79
77		1450455.0970
300-235B420
540
650		116.7
150
181		14.3
12.8
10.5		73
78
70		1450375.0925
300-250540
720
900		150
200
250		22.5
20
17		80
83
84		1450556.01085
300-250A450
600
720		136
166
200		19.5
17
14		811450456.0980
300-300540
720
900		150
200
250		32
28
23		821480755.01230
300-300A450
600
720		125
166
200		27.5
24
20		801480755.01095
300-300B420
540
650		116.7
150
181		24
21
17		781480555.0980
300-315540
720
900		150
200
250		35
32
26		841480904.51350
300-315A460
650
800		127.8
180
222		31.5
28
23.5		801480754.51240
300-315B420
580
700		116.7
161
194		27
24
20.0		781480554.51100
300-380480
720
900		133.3
200
250		48
44
34		84970132.05.01900
300-380A444
666
833		123.3
185
231.4		41.4
38
30		80970110.05.01700
300-380B400
614
764		113.6
170.6
213.1		35
32
35		7897090.05.01530
300-390540
720
900		150
200
250		20.5
18
15.5		78
81
76		980555.01300
300-390A450
600
720		126
167
200		17.2
15
12.8		77
79
75		980455.01220
300-390B400
540
650		111
150
180		14
12.5
11.5		74
77
76		980375.01100
300-400450
600
720		125
166
200		55
50
42.5		7814801105.01500
300-480540
720
900		150
200
250		31
28
24		79
81
80		980755.01500
300-480A450
600
720		126
166
200		27.4
24
20.0		78
80
79		980755.01280
300-480B400
540
650		111
150
180		24
21
17		79980555.01180
350-235600
800
960		167
222
267		14
12.5
10.5		80
83
82		1480374.51050
350-300600
800
960		167
222
267		22.5
20
17.5		79
82
71		1480554.51230
350-315600
800
960		167
222
267		35.5
32
28.5		841480904.51650
350-400600
800
960		167
222
267		55
50
45.5		8314801604.51950
400-300920
1080
1300		228
300
361		23
20
16		781480906.01570
400-315820
1080
1300		205
300
344		36.5
32
27		7614801326.01880
500-3001000
1200
1450		277.8
333
403		23
20
16.0		8014801106.01800
500-3151000
1200
1450		278
333
403		34.5
32
27		7814801606.02070


进口双吸管道泵 进口防爆管道泵
  • If you are going to use a passage
  • If you are going to use a passage
  • Sure there isn't anything embarrassing
  • Sure there isn't anything embarrassing

How We Solve This Project

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostruds exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit

01

Thinking

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered

02

Research

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered

03

Wireframe

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered

04

Design

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered


Get Started Instantly!

Request a Call Back Now

公司介绍

德国诺克工业集团
GER NOOK INDUSTRIAL GROUP
中国一级总代理商
格兰富国际贸易（厦门）有限公司

  • 中国（福建）自由贸易试验区厦门片区高殿路2号321室
  • 0592-7113982 （24/7 Support Line）

主营产品

行业新闻

Copyright © 2021 Theme All Rights Reserved

关于我们 产品中心 新闻资讯 联系我们 服务中心
