美国尼科NICO进口排污液下泵液下式排污泵为立式液下式结构，工作时泵体浸在水中，液下深度可达0.5～5m,并采用的单叶片或双叶片叶轮结构,能有效通过泵口径5倍的纤维物质及直径为口径50%的固体颗粒。主要适用于企业单位废水排放；城市污水处理厂排放系统；地铁、地下室、人防系统排水站；医院、宾馆、高层建筑污水排放；住宅区的污水排水站；市政工程，建筑工地中稀泥浆的排放；自来水厂的给水装置。液下式排污泵养殖场污水排放及农村农田灌溉。液下式排污泵勘探矿山及水处理设备配套。代替肩挑人担，吸送河泥。液下式排污泵使用条件水温≤60℃，液体PH值为4～10。
公称通径：25-500(mm)
流量范围：8-2600(m3/h)
扬程范围：7-60(m)
功率范围：1.1-250Kw
转速范围：740-2900r/min
防爆标志：ExdeIIBT4 DIP21 TA T6
防护等级：IP54/IP65
额定电压：DC24v、220v、380v，660v，1140v（DC、AC）
温度范围：-20℃～120℃
工作压力：≤1.6Mpa
泵体材质：铸铁、WCB、304、316、316L
1、可变的液位安装深度：机组为立式液下式结构，可根据用户的要求采用不同的液下安装深度，使用极为方便。
2、单管或双管安装：液下式排污泵根据用户要求选择不同的安装方式;可选择单管或双管安装。
3、降低维修成本：采用材料制作而成的机械密封，及优质的轴承，大大提高了密封的安全性和机组的可靠性。
4、过流能力强：特殊的叶轮防堵设计，确保了运行高效且无堵塞。

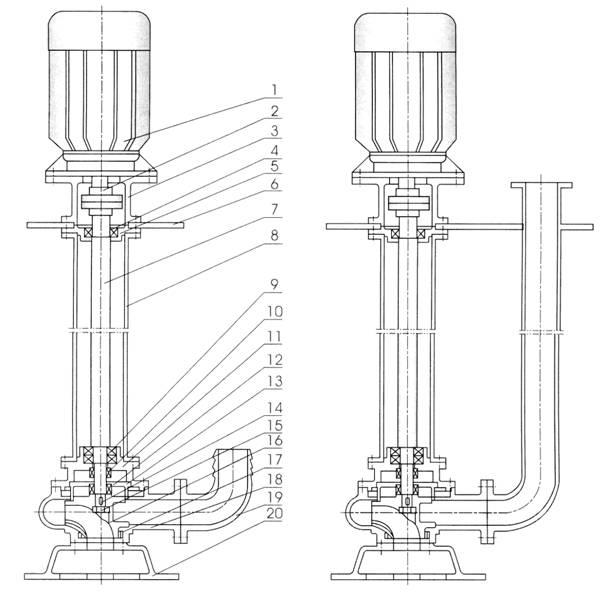

| 1 | 电机 | 11 | 油室 |
| 2 | 联轴器 | 12 | 机械密封 |
| 3 | 电机座 | 13 | 后盖板 |
| 4 | 上轴承 | 14 | 键 |
| 5 | 上轴承座 | 15 | 叶轮螺母 |
| 6 | 安装盘 | 16 | 叶轮 |
| 7 | 加长轴 | 17 | 密封环 |
| 8 | 支撑管 | 18 | 泵体 |
| 9 | 下轴承 | 19 | 出水管 |
| 10 | 上机械密封 | 20 | 底盘 |
| 型 号 | 口 径 (mm) | 流 量 (m3/h) | 扬 程 (m) | 功 率 (kw) | 转 速 (r/min) | 效 率 (%) |
| PW25-8-22-1.1 | 25 | 8 | 22 | 1.1 | 2825 | 38.5 |
| PW32-12-15-1.1 | 32 | 12 | 15 | 1.1 | 2825 | 40 |
| PW40-15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 | 45.1 |
| PW40-15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 | 48 |
| PW50-20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 | 54 |
| PW50-10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 | 56 |
| PW50-20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 | 55 |
| PW50-15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 | 56 |
| PW50-18-30-3 | 50 | 18 | 30 | 3 | 2880 | 58 |
| PW50-25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
| PW50-20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
| PW65-25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 | 52 |
| PW65-37-13-3 | 65 | 37 | 13 | 3 | 2880 | 55 |
| PW65-25-30-4 | 65 | 25 | 30 | 4 | 2890 | 58 |
| PW65-30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
| PW65-35-50-11 | 65 | 35 | 50 | 11 | 2930 | 60 |
| PW65-35-60-15 | 65 | 35 | 60 | 15 | 2930 | 63 |
| PW80-40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 | 52 |
| PW80-43-13-3 | 80 | 43 | 13 | 3 | 2880 | 50 |
| PW80-40-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 |
| PW80-65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
| PW100-80-10-4 | 100 | 80 | 10 | 4 | 1440 | 62 |
| PW100-110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 | 66 |
| PW100-100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 | 67 |
| PW100-85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 | 68 |
| PW100-100-25-11 | 100 | 100 | 25 | 11 | 1460 | 65 |
| PW100-100-30-15 | 100 | 100 | 30 | 15 | 1460 | 66 |
| PW100-100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 | 65 |
| PW125-130-15-11 | 125 | 130 | 15 | 11 | 1460 | 62 |
| PW120-130-20-15 | 125 | 130 | 20 | 15 | 1460 | 63 |
| PW150-145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 | 63 |
| PW150-180-15-15 | 150 | 180 | 15 | 15 | 1460 | 65 |
| PW150-180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 | 75 |
| PW150-180-25-22 | 150 | 180 | 25 | 22 | 1470 | 76 |
| PW150-130-30-22 | 150 | 130 | 30 | 22 | 1470 | 75 |
| PW150-180-30-30 | 150 | 180 | 30 | 30 | 1470 | 73 |
| PW150-200-30-37 | 150 | 200 | 30 | 37 | 1480 | 70 |
| PW200-300-7-11 | 200 | 300 | 7 | 11 | 970 | 73 |
| PW200-250-11-15 | 200 | 250 | 11 | 15 | 970 | 74 |
| PW200-400-10-22 | 200 | 400 | 10 | 22 | 1470 | 76 |
| PW200-400-13-30 | 200 | 400 | 13 | 30 | 1470 | 73 |
| PW200-250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 | 72 |
| PW200-300-15-22 | 200 | 300 | 15 | 22 | 1470 | 73 |
| PW200-250-22-30 | 200 | 250 | 22 | 30 | 1470 | 71 |
| PW200-350-25-37 | 200 | 350 | 25 | 37 | 1980 | 75 |
| PW200-400-30-55 | 200 | 400 | 30 | 55 | 1480 | 70 |
| PW250-600-9-30 | 250 | 600 | 9 | 30 | 980 | 74 |
| PW250-600-12-37 | 250 | 600 | 12 | 37 | 1480 | 78 |
| PW250-600-15-45 | 250 | 600 | 15 | 45 | 1480 | 75 |
| PW250-600-20-55 | 250 | 600 | 20 | 55 | 1480 | 73 |
| PW250-600-25-75 | 250 | 600 | 25 | 75 | 1480 | 73 |
| PW300-800-12-45 | 300 | 800 | 12 | 45 | 980 | 76 |
| PW300-500-15-45 | 300 | 500 | 15 | 45 | 980 | 70 |
| PW300-800-15-55 | 300 | 800 | 15 | 55 | 980 | 73 |
| PW300-600-20-55 | 300 | 600 | 20 | 55 | 980 | 75 |
| PW300-800-20-75 | 300 | 800 | 20 | 75 | 980 | 78 |
| PW300-950-20-90 | 300 | 950 | 20 | 90 | 980 | 80 |
| PW300-1000-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 |
| PW350-1100-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 |
| PW350-1500-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 |
| PW350-1200-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 |
| PW350-1100-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 |
| PW350-1000-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 |
| PW400-1500-10-75 | 400 | 1500 | 10 | 75 | 980 | 82.1 |
| PW400-2000-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 |
| PW400-1700-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 |
| PW400-1500-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 |
| PW400-1700-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 |
| PW400-1800-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 |
| PW500-2500-10-110 | 500 | 2500 | 10 | 110 | 740 | 82 |
| PW500-2600-15-160 | 500 | 2600 | 15 | 160 | 740 | 83 |
| PW500-2400-22-220 | 500 | 2400 | 22 | 220 | 740 | 84 |
| PW500-2600-24-250 | 500 | 2600 | 24 | 250 | 740 | 82 |
