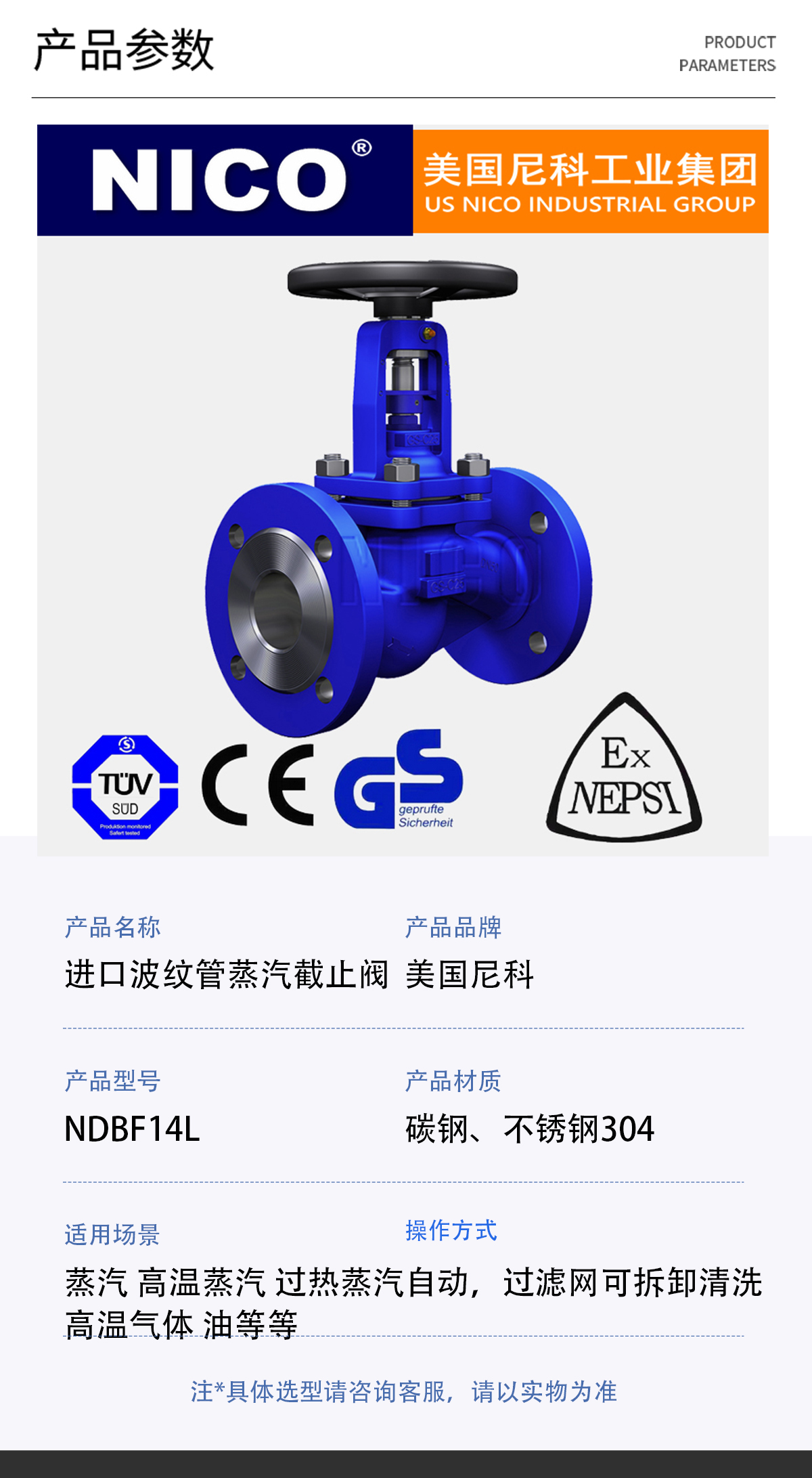

| 产品名称： | 进口波纹管蒸汽 | 产品型号： | NDBF14L |
| 公称通径 | DN15~DN300 | 连接方式 | 法兰 |
| 结构形式 | 双层金属波纹管密封 | ||
| 工作压力 | 10Bar~60Bar | 功能作用 | 开关调节 |
| 适用温度： | -40℃~+525℃ | 阀芯材质 | SS304,SS316,SS316L |
| 开关方式 | 手轮 | 流动方向 | 单向 |
| 阀体材质： | WCB，CF8,CF8M,CF3,CF3M | 设计标准 | 德标DIN/美标ANSI |
| 适用介质： | 蒸汽、高温蒸汽、气体、油 | ||
| 测试压力 | 1.5倍的最大工作压力 | 生产厂家 | 美国NICO尼科工业 |

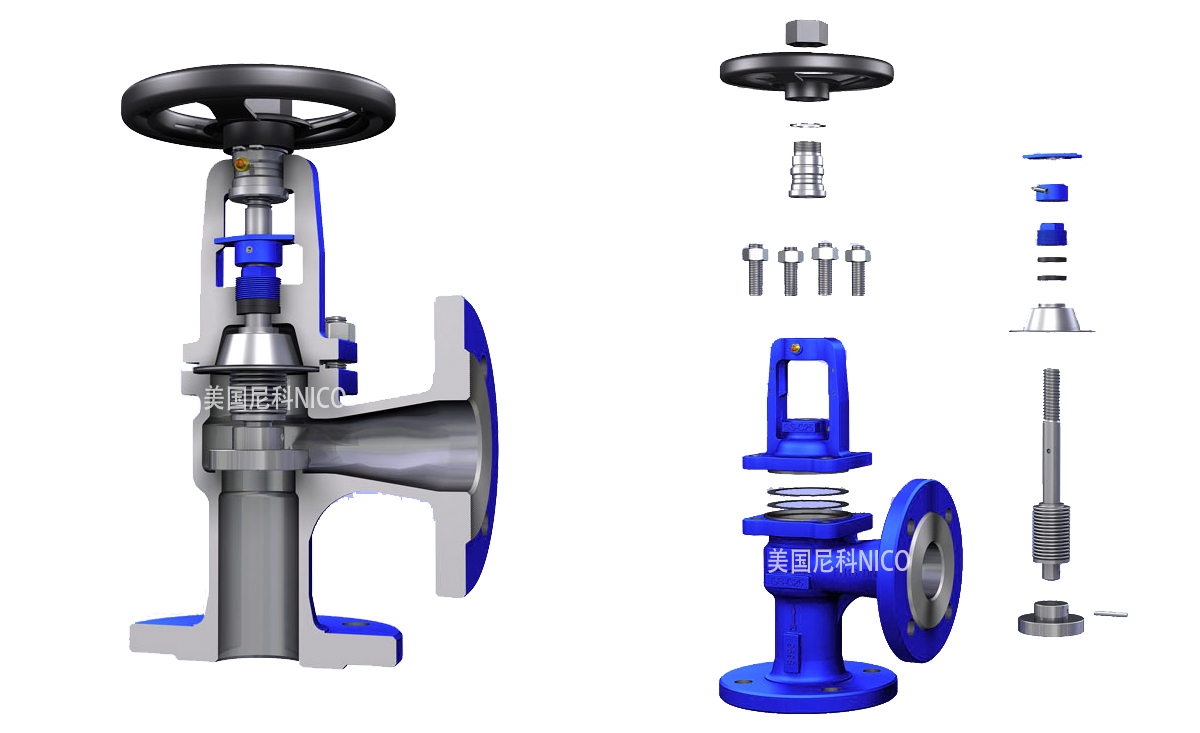

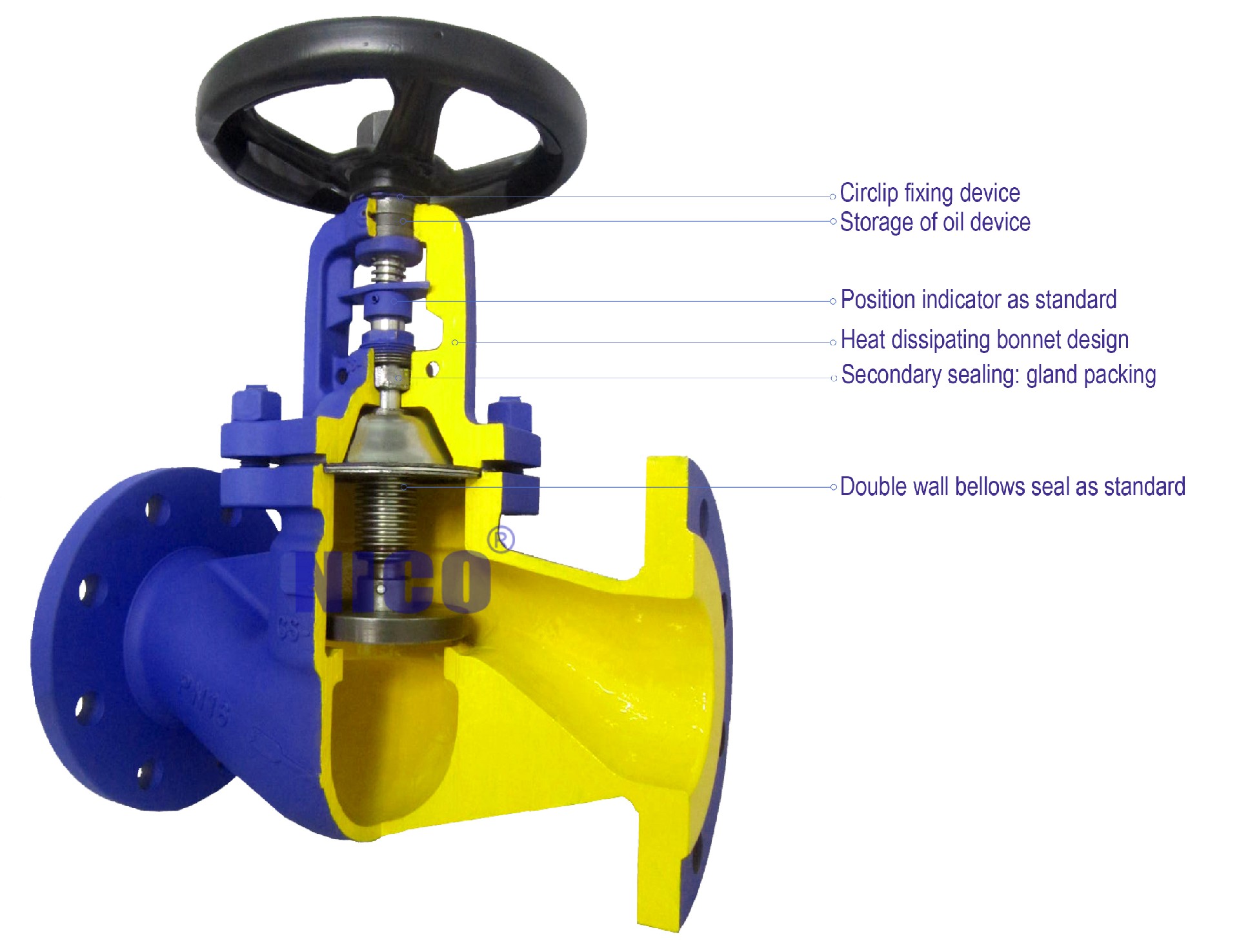

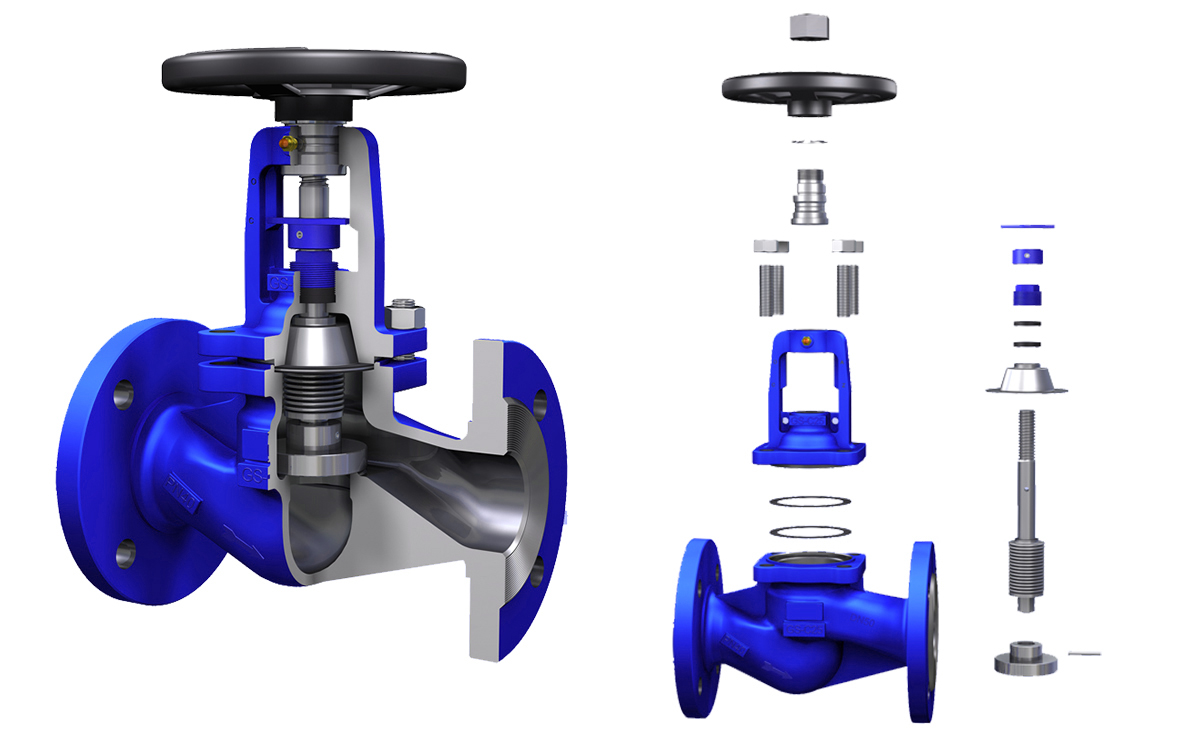

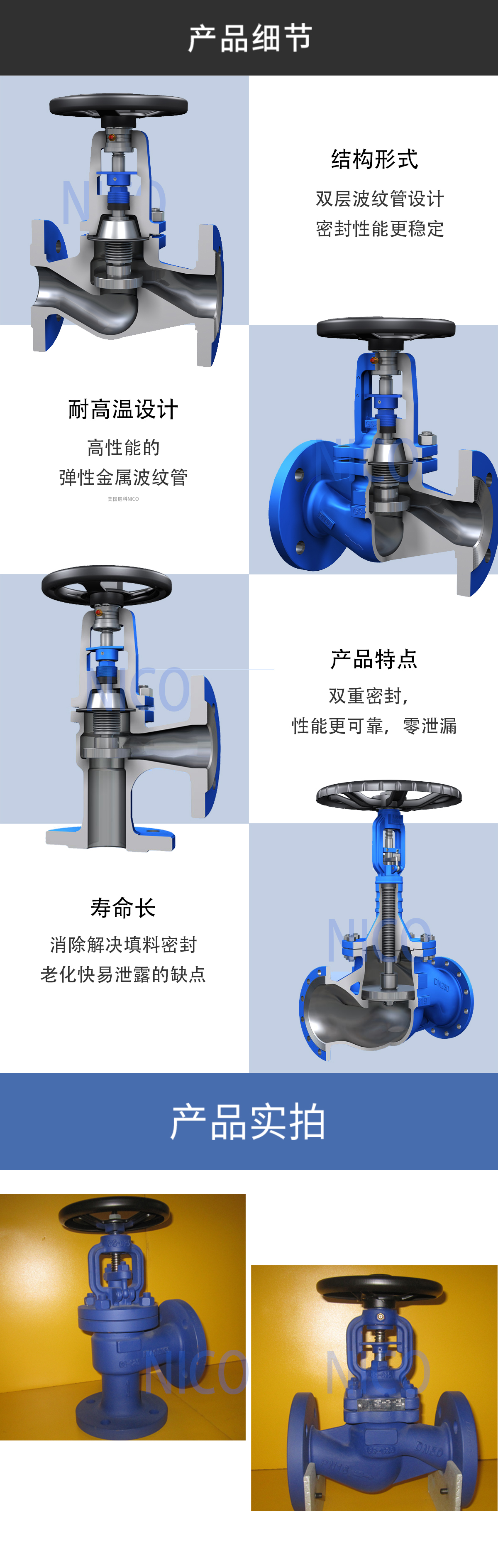

进口波纹管蒸汽截止阀采用金属波纹管密封技术制造、高性能的弹性金属波纹管、伸缩疲劳寿命特别长；完全消除了普通阀门阀杆填料密封老化快易泄露的缺点，波纹管截止阀不但提高了使用能源效率、增加生产设备安全性、减少了维修费用及频繁的维修保养，还提供了清洁安全的工作环境。波纹管密封截止阀适用于石油、化工、制药、化肥、电力等行业的各种工况管路上，用于切断或接通管路介质。

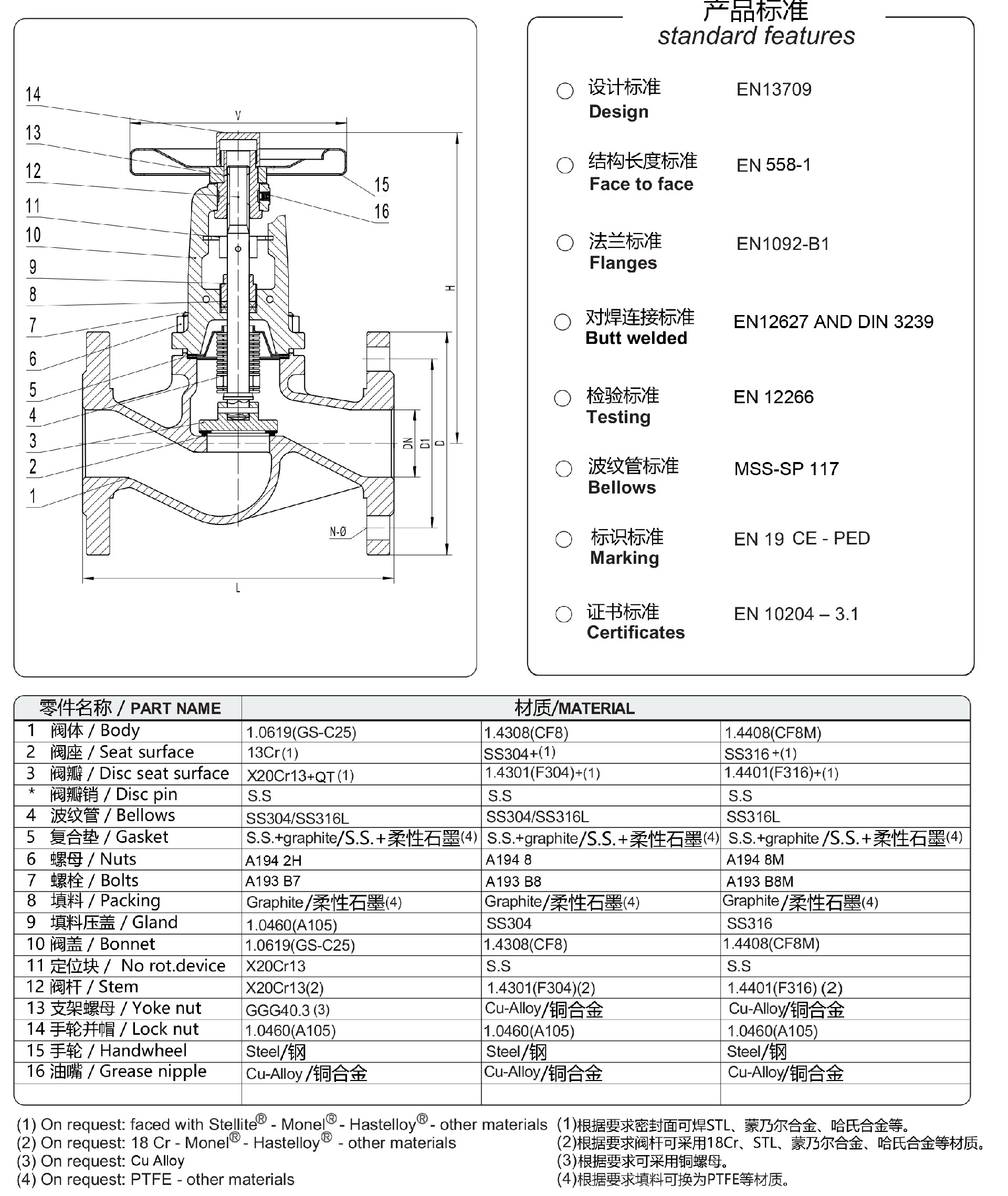

FIG.BSV1 BELLOWS SEAL GLOBE VALVE DIN PN16 - Face to Face EN558-1
| SIZE DN | 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 |
| L RF | 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100 |
| D | 95 105 115 140 150 165 185 200 220 250 285 340 405 460 520 580 |
| V | 120 140 140 140 160 160 180 200 250 250 350 450 500 500 600 600 |
| H | 196 196 205 205 222 224 240 265 350 380 410 550 715 790 950 1030 |
| STROKE | 6 6 9 9 13 13 19 22 27 32 40 55 70 80 90 105 |
FIG.BSV2 BELLOWS SEAL GLOBE VALVE DIN PN25 - Face to Face EN558-1
| SIZE DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L RF/BW | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 235 | 270 | 300 | 360 | 425 | 485 | 555 | 620 |
| V | 140 | 140 | 160 | 160 | 180 | 180 | 200 | 250 | 300 | 350 | 400 | 500 | 500 | 500 | 600 | 600 |
| H | 196 | 196 | 205 | 205 | 222 | 224 | 240 | 265 | 350 | 380 | 410 | 550 | 715 | 790 | 950 | 1030 |
| STROKE | 6 | 6 | 9 | 9 | 13 | 13 | 19 | 22 | 27 | 32 | 40 | 55 | 70 | 80 | 90 | 105 |
FIG.BSV3 BELLOWS SEAL GLOBE VALVE DIN PN40 - Face to Face EN558-1
| SIZE DN | 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 |
| L RF/BW | 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100 |
| D | 95 105 115 140 150 165 185 200 235 270 300 375 450 515 580 660 |
| V | 140 140 160 160 180 180 200 250 300 350 400 500 500 500 600 600 |
| H | 196 196 205 205 222 224 240 265 350 380 410 550 715 790 950 1030 |
| STROKE | 6 6 9 9 13 13 19 22 27 32 40 55 70 80 90 105 |
O TOP FLANGE TO ISO 5210 /执行器连接法兰标准：IOS5210O PTFE SOFT SEATS/PTFE软密封阀座
O GEAR OPERATOR/齿轮操作
O CHAIN WHEEL OPERATOR /链条轮操作
O PNEUMATIC ACTUATOR/气动执行器O HYDRAULIC ACTUATOR/液压执行器O ELECTRIC ACTUATOR /电动执行器O POSITION INDICATOR /位置显示器O LIMIT SWITCHES /限位开关
O LOCKING / INTERLOCK SYSTEM/锁紧/连锁系统
All dimensions in mm (except where differently indicated)
O STEM PROTECTION / EXTENSION/阀杆保护/延长寿命

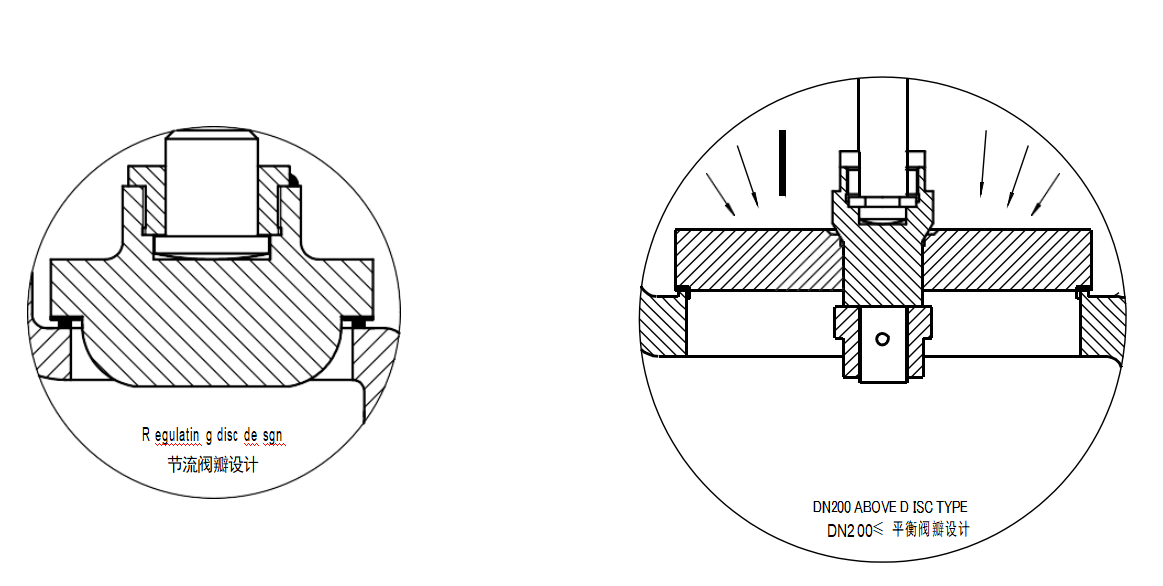

O REGULATING DISC /节流阀瓣
O DOUBLE STAGE DISC/双阀瓣设计
O STOP CHECK DISC /止回阀瓣设计
O LIVE LOADED PACKING/填料压板设计
O DRAIN PLUG /排污堵头
O BW ENDS/对焊连接法兰
O ANSI CONNECTIONS /美标连接法兰
All data, subject to technical changes, are only for information and not for official use.
