| 产品名称： | 进口电动高真空球阀 | 产品型号： | GUD |
| 公称通径： | DN10～DN300 | 结构形式： | 球形 |
| 公称压力： | 负压0.1公斤 | 连接方式： | 法兰、螺纹、快卸法兰、活接 |
| 适用温度： | ≤180ºC | 驱动方式： | 手动、气动、电动 |
| 阀体材质： | 铸钢、不锈钢 | 制造标准： | 国标GB、德国DIN、美国API、ANSI |
| 适用介质： | 空气、气体、油、液体 | 品牌名称： | 美国尼科NICO |

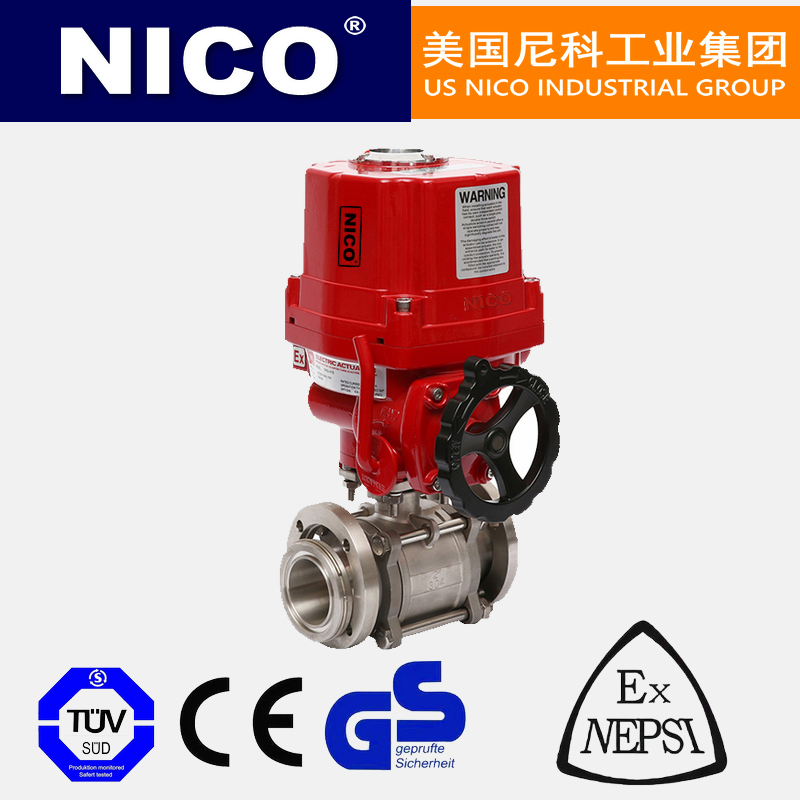

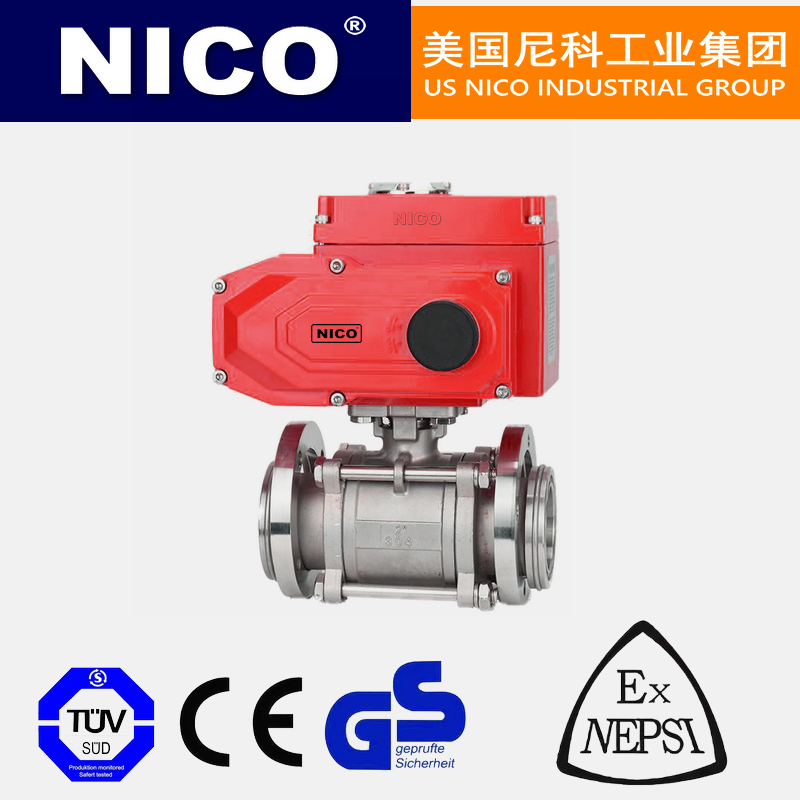

美国尼科NICO进口电动高真空球阀是以电动装置驱动阀杆与球芯来执行启闭动作，达到接通或切断真空(压力)系统管路中的介质流。应用于真空、乳制品、酒业、生物工程、食品、制药、饮料、化妆品及化工领域。 主要零件材料 阀体、阀盖、阀杆：不锈钢 密封件：四氟乙烯、丁腈橡胶、氟橡胶、PPL。
| Model型号 | DN | G | H | E | L |
| GUD-10(G) | 10 | 1/4" | 153 | 157 | 68 |
| GUD-16(G) | 16 | 1/2" | 172 | 157 | 72 |
| GUD-20(G) | 20 | 3/4" | 178 | 157 | 82 |
| GUD-25(G) | 25 | 1" | 187 | 157 | 90 |
| GUD-32(G) | 32 | 1-1/4" | 206 | 157 | 112 |
| GUD-40(G) | 40 | 1-1/2" | 212 | 157 | 120 |
| GUD-50(G) | 50 | 2" | 265 | 157 | 145 |
| GUD-63(G) | 63 | 2-1/2" | 305 | 207 | 185 |
| GUD-80(G) | 80 | 3" | 330 | 207 | 210 |
| GUD-100(G) | 100 | 4" | 350 | 207 | 268 |
| Model 型号 | DN | D | Do | H | E | L | n-φc |
| GUD-10(F) | 10 | 55 | 40 | 153 | 157 | 84 | 4-φ6.6 |
| GUD-16(F) | 16 | 60 | 45 | 172 | 157 | 84 | 4-φ6.6 |
| GUD-25(F) | 25 | 70 | 55 | 187 | 157 | 114 | 4-φ6.6 |
| GUD-32(F) | 32 | 90 | 70 | 206 | 157 | 140 | 4-φ9 |
| GUD-40(F) | 40 | 100 | 80 | 212 | 157 | 160 | 4-φ9 |
| GUD-50(F) | 50 | 110 | 90 | 265 | 157 | 170 | 4-φ9 |
| GUD-63(F) | 63 | 130 | 110 | 305 | 207 | 195 | 4-φ9 |
| GUD-80(F) | 80 | 145 | 125 | 330 | 207 | 203 | 8-φ9 |
| GUD-100(F) | 100 | 165 | 145 | 350 | 207 | 280 | 8-φ9 |
| Model 型号 | DN | D1 | D | H | E | L |
| GUD-10(KF) | 10 | 12.2 | 30 | 153 | 157 | 84 |
| GUD-16(KF) | 16 | 17.2 | 30 | 172 | 157 | 84 |
| GUD-25(KF) | 25 | 26.2 | 40 | 187 | 157 | 114 |
| GUD-32(KF) | 32 | 34.2 | 55 | 206 | 157 | 140 |
| GUD-40(KF) | 40 | 41.2 | 55 | 212 | 157 | 160 |
| GUD-50(KF) | 50 | 52.2 | 75 | 265 | 157 | 170 |
