进口立式双吸离心泵

一、进口立式双吸离心泵产品概述

美国尼科NICO进口立式双吸离心泵（原来也称中开型），使用双吸式叶轮，并且泵可以中间剖开，故称为双吸中开式离心泵。美国尼科NICO结合用户使用习惯和使用难点优化之后研发的泵种。供抽送清水或物理化学性质类似于清水的其它液体之用。要求被输送液体温度≤80℃。标配填料密封，可选配机械密封。因其可以中间剖开的特性，检修维修十分方便。深受广大用户的喜爱。第二代水力模型更优按API610 BB1结构化工系列单级双吸、水平中开式离心泵，温度范围:<80℃,底脚支撑，油润滑，效率更高，可供广大用户比较选择。高温系列、单级双吸水平中开离心泵;温度范围: 80~150℃，温度>120℃采用中心支撑。

二、进口立式双吸离心泵选型参数

公称通径：25～1000mm

流量范围：9180m3/h

扬程范围：5～55m

功率范围：1.5～135KW

转速范围：740-2900r/min

温度范围 :-20℃～150℃

工作压力：≤1.6Mpa

泵体材质：WCB、304、316、四氟

三、进口立式双吸离心泵特点

本型泵的吸入口与吐出口均在水泵轴心线下方，水平方向与轴线成垂直位置，泵壳中开，检修时无需拆卸进水、排出管路及电动机(或其他原动机)。从联轴器向泵的方向看去，水泵为逆吋针方向旋转。如根据用户订货需要也可改为顺吋针旋转。

本型泵的主要零部件有：泵体、泵盖、叶轮、轴、双吸密封环、轴套、轴承等。

泵体与泵盖构成叶轮的工作室，在进出水法兰上制有安装真空表和压力表的管螺孔，进出水法兰的下部制有放水的管螺孔。

叶轮经过静平衡校验，用轴套和两侧的轴套螺母固定，其轴向位置可以通过轴套螺母进行调整，叶轮的轴向力利用其叶片的对称布置达到平衡，可能还有一些剩余轴向力则由轴端的轴承承受。

泵轴由两个单列向心球轴承支承，轴承装在泵体两端的轴承体内，用黄油润滑，双吸密封环用以减少水泵压水室的水漏回吸水室。

水泵通过联轴器由电动机直接传动。

轴封为软填料密封，为了冷却润滑密封腔和防止空气漏入泵内，在填料之间有水封环，水泵工作时小量高压水通过水封管流入填料腔起水封作用。

进口立式双吸离心泵应用领域（高效、稳定、低维护）

发电行业：发电厂冷却循环水泵/开、闭式水循环水泵/热网循环泵

造纸行业：网前箱供料泵/流浆箱给水泵/原水抽吸泵

钢铁行业：加热炉循环泵/风口高压泵/氧枪泵/高压除鳞泵/轧机冷却泵

石化行业：短距离管线输油/原油输送/石油码头油品装卸/循环水

水务行业：自来水厂供水/城市排涝/消防供水/供水泵站/工业用水

海水淡化：海水供应泵/海水再循环泵

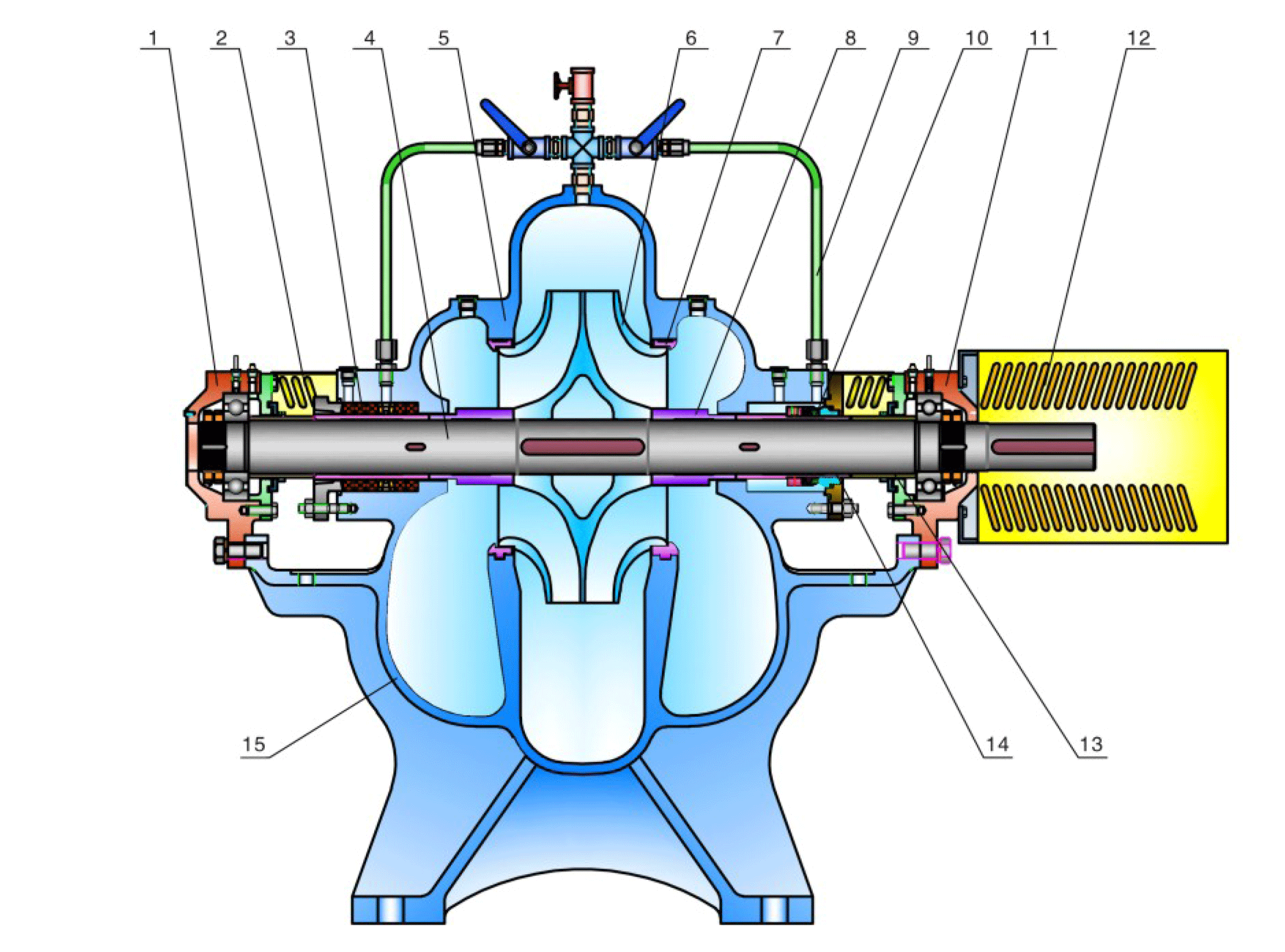

四、进口立式双吸离心泵结构图

五、进口立式双吸离心泵主要材料表

1轴承体部件乙	2护罩	3填料密封部件	4轴	5泵盖	6叶轮
7密封环	8叶轮挡套	9水封管部件	10机械密封部件	11轴承体部件甲	12联轴器罩
13轴承挡套	14轴套	15泵体

六、进口立式双吸离心泵性能参数

型号(Type)		流量(Q) Capacity		扬程(H) Head	转速(n) Speed	轴功率(Pa) ShaftPower	配套电机Motor		效率 Eff.	汽蚀余量 NPSHr	泵重 Weight
型号(Type)		(m3/h)	(l/s)	(m)	(r/min)	(kW)	(kW)	型号(Type)	(%)	(m)	(kg)
SX150-240/2		160	44.4	78	2970	42.5	55	NK2-250M-2	80	4.0	165
	A	150	41.7	69		35.5	45	NK2-225M-2	79	3.9
	B	141	39.2	61		29.8	37	NK2-200L2-2	78	3.8
	C	132	36.7	53		24.8	30	NK2-200L1-2	77	3.7
SX150-240M/2		162	45.0	65	2970	36.3	45	NK2-225M-2	79	3.8	165
	A	152	42.3	58		30.6	37	NK2-200L2-2	78	3.7
	B	143	39.7	51		25.5	30	NK2-200L1-2	77	3.6
	C	134	37.3	45		21.6	30	NK2-200L1-2	76	3.5
SX150-310/2		192	53.3	122	2970	84.0	110	NK2-315S-2	76	4.2	200
	A	180	50.0	107		70.1	90	NK2-280M-2	75	4.1
	B	169	47.0	95		59.0	75	NK2-280S-2	74	4.0
	C	158	44.0	83		49.1	55	NK2-250M-2	73	3.9
SX150-310M/2		162	45.0	107	2970	63.0	75	NK2-280S-2	75	4.0	200
	A	152	42.3	95		53.1	75	NK2-280S-2	74	3.9
	B	143	39.7	83		44.3	55	NK2-250M-2	73	3.8
	C	134	37.3	74		37.5	45	NK2-225M-2	72	3.7
SX200-160/2		342	95.0	21	2970	25.1	30	NK2-200L1-2	78	4.9	210
	A	329	91.3	19		22.6	30	NK2-200L1-2	77	4.7
	B	314	87.3	18		20.0	30	NK2-200L1-2	76	4.6
	C	300	83.3	16		17.6	22	NK2-180M-2	75	4.5
SX200-160M/2		294	81.7	19	2970	19.8	30	NK2-200L1-2	77	4.6	210
	A	282	78.3	17		17.7	22	NK2-180M-2	76	4.5
	B	270	75.0	16		15.7	18.5	NK2-160L-2	75	4.4
	C	259	72.0	15		14.1	18.5	NK2-160L-2	74	4.3
SX200-200/2		342	95.0	39	2970	44.3	55	NK2-250M-2	82	5.1	220
	A	329	91.3	36		39.9	45	NK2-225M-2	81	4.9
	B	314	87.3	33		35.3	45	NK2-225M-2	80	4.8
	C	300	83.3	30		31.0	37	NK2-200L2-2	79	4.7
SX200-200M/2		294	81.7	33	2970	32.6	37	NK2-200L2-2	81	4.9	220
	A	282	78.3	30		29.2	37	NK2-200L2-2	80	4.8
	B	270	75.0	28		25.9	30	NK2-200L2-2	79	4.7
	C	259	72.0	26		23.2	30	NK2-200L2-2	78	4.4
SX200-240/2		342	95.0	65	2970	73.0	90	NK2-280M-2	83	5.4	250
	A	324	90.0	58		62.8	75	NK2-280S-2	82	5.2
	B	308	85.7	53		54.8	75	NK2-280S-2	81	5.0
	C	290	80.7	47		46.3	55	NK2-250M-2	80	4.9
SX200-240M/2		294	81.7	58	2970	56.6	75	NK2-280S-2	82	4.8	250
	A	280	77.7	52		49.3	55	NK2-250M-2	81	4.6
	B	264	73.3	47		42.0	55	NK2-250M-2	80	4.4
	C	250	69.3	42		36.0	45	NK2-225M-2	79	4.3
SX200-280/2		342	95.0	105	2970	122.3	160	NK2-315L1-2	80	5.3	310
	A	322	89.3	93		103.0	132	NK2-315M-2	79	5.1
	B	300	83.3	81		84.7	110	NK2-315S-2	78	4.9
	C	281	78.0	71		70.3	90	NK2-280M-2	77	4.8
SX200-280M/2		294	81.7	94	2970	100.4	110	NK2-315S-2	75	5.0	310
	A	276	76.7	83		84.2	90	NK2-280M-2	74	4.8
	B	259	72.0	73		70.7	75	NK2-280S-2	73	4.6
	C	241	67.0	63		57.7	75	NK2-280S-2	72	4.5
SX200-280/4		170	47.2	26	1480	15.1	18.5	NK2-180M-4	80	1.8	310
	A	158	44.0	23		12.3	15	NK2-160L-4	79	1.7
	B	148	41.0	20		10.1	15	NK2-160L-4	78	1.6
	C	138	38.3	17		8.4	11	NK2-160M-4	77	1.5
SX200-280M/4		144	40.0	23	1480	12.0	15	NK2-160L-4	75	1.7	310
	A	136	37.7	20		10.2	15	NK2-160L-4	74	1.6
	B	127	35.3	18		8.5	11	NK2-160M-4	73	1.5
	C	119	33.0	16		7.0	11	NK2-160M-4	72	1.4
SX200-370/2		370	102.8	190	2970	262.3	280	YX450-2	73	5.3	480
	A	348	96.6	168		221.2	250	NK2-355M2-2	72	5.1
	B	325	90.2	146		182.1	200	NK2-315L2-2	71	4.9
	C	304	84.4	128		151.4	185	NK2-315L2-2	70	4.8
SX200-370M/2		294	81.7	115	2970	129.7	185	NK2-315L2-2	71	4.9	480
	A	276	76.7	101		108.9	160	NK2-315L1-2	70	4.7
	B	259	72.0	89		91.5	132	NK2-315M-2	69	4.5
	C	241	67.0	77		74.8	110	NK2-315S-2	68	4.4
SX200-370/4		168	46.7	48	1480	30.1	37	NK2-225S-4	73	1.7	480
	A	158	44.0	43		25.6	30	NK2-200L-4	72	1.6
	B	148	41.0	37		21.0	30	NK2-200L-4	71	1.5
	C	138	38.3	32		17.4	22	NK2-180L-4	70	1.4
SX200-370M/4		144	40.0	30	1480	16.6	22	NK2-180L-4	71	1.6	480
	A	136	37.7	27		14.0	18.5	NK2-180M-4	70	1.5
	B	127	35.3	23		11.8	15	NK2-160L-4	69	1.4
	C	119	33.0	20		9.7	15	NK2-160L-4	68	1.3
SX200-365/4		384	106.7	43	1480	56.2	75	NK2-280S-4	80	2.5	350
	A	365	101.3	39		48.8	55	NK2-250M-4	79	2.4
	B	346	96.0	35		42.0	45	NK2-225M-4	78	2.3
	C	326	90.7	31		35.9	37	NK2-225S-4	77	2.2
SX200-365M/4		326	90.7	38	1480	42.8	55	NK2-250M-4	79	2.4	350
	A	310	86.0	34		37.0	45	NK2-225M-4	78	2.3
	B	293	81.3	31		31.7	37	NK2-225S-4	77	2.2
	C	277	77.0	27		27.2	30	NK2-200L-4	76	2.1
SX200-500/4		384	106.7	73	1480	97.9	110	NK2-315S-4	78	2.4	390
	A	365	101.3	66		85.0	110	NK2-315S-4	77	2.3
	B	346	96.0	59		73.2	90	NK2-280M-4	76	2.2
	C	326	90.7	53		62.5	75	NK2-280S-4	75	2.1
SX200-500M/4		348	96.7	68	1480	83.7	90	NK2-280M-4	77	2.3	390
	A	330	91.7	61		72.3	90	NK2-280M-4	76	2.2
	B	313	87.0	55		62.7	75	NK2-280S-4	75	2.1
	C	295	82.0	49		53.2	75	NK2-280S-4	74	2.0
SX250-250/4		588	163.3	12	1480	23.4	30	NK2-200L-4	82	3.6	320
	A	564	156.7	11		20.9	30	NK2-200L-4	81	3.5
	B	540	150.0	10		18.6	22	NK2-180L-4	80	3.4
	C	518	144.0	9		16.7	18.5	NK2-180M-4	79	3.3
SX250-250M/4		498	138.3	10	1480	16.7	22	NK2-180L-4	81	3.4	320
	A	478	132.7	9		15.0	18.5	NK2-180M-4	80	3.3
	B	458	127.3	8		13.4	18.5	NK2-180M-4	79	3.2
	C	438	121.7	8		11.8	15	NK2-160L-4	78	3.1
SX250-300/4		588	163.3	20	1480	38.1	45	NK2-225M-4	84	3.5	350
	A	564	156.7	18		34.1	45	NK2-225M-4	83	3.4
	B	540	150.0	17		30.3	37	NK2-225S-4	82	3.3
	C	518	144.0	16		27.1	37	NK2-225S-4	81	3.2
SX250-300M/4		498	138.3	19	1480	31.1	37	NK2-225S-4	83	3.2	350
	A	478	132.7	17		27.7	37	NK2-225S-4	82	3.1
	B	458	127.3	16		24.8	30	NK2-200L-4	81	3.0
	C	438	121.7	15		21.9	30	NK2-200L-4	80	2.9
SX250-360/2		588	163.3	147	2970	294.3	355	YX450-2	80	6.8	500
	A	552	153.3	130		246.6	315	YX450-2	79	6.6
	B	518	144.0	114		206.9	250	NK2-355M2-2	78	6.3
	C	482	134.0	99		168.9	200	NK2-315L2-2	77	6.0
SX250-360M/2		498	138.3	115	2970	197.5	250	NK2-355M2-2	79	6.1	500
	A	468	130.0	102		166.0	200	NK2-315L2-2	78	5.9
	B	438	121.7	89		137.8	185	NK2-315L2-2	77	5.7
	C	408	113.3	77		112.9	160	NK2-315L1-2	76	5.5
SX250-350/4		621	172.5	37	1480	72.8	90	NK2-280M-4	86	3.3	390
	A	616	171.0	36		71.7	75	NK2-280S-4	85	3.1
	B	583	162.0	33		61.7	75	NK2-280S-4	84	3.0
	C	551	153.0	29		52.6	55	NK2-250M-4	83	2.9
SX250-350M/4		498	138.3	31	1480	49.5	55	NK2-250M-4	85	2.7	390
	A	473	131.3	28		42.8	55	NK2-250M-4	84	2.6
	B	449	124.7	25		37.1	45	NK2-225M-4	83	2.5
	C	424	117.7	22		31.6	37	NK2-225S-4	82	2.4
SX250-370/4		588	163.3	44	1480	82.9	90	NK2-280M-4	85	3.2	480
	A	552	153.3	39		69.4	75	NK2-280S-4	84	3.1
	B	518	144.0	34		58.2	75	NK2-280S-4	83	3.0
	C	482	134.0	30		47.5	55	NK2-250M-4	82	2.9
SX250-370M/4		498	138.3	39	1480	63.0	75	NK2-280S-4	84	3.1	480
	A	468	130.0	34		52.9	75	NK2-280S-4	83	3.0
	B	438	121.7	30		43.9	55	NK2-250M-4	82	2.9
	C	408	113.3	26		35.9	45	NK2-225M-4	81	2.8
SX250-450/4		621	172.5	65	1480	134.1	160	NK2-315L1-4	82	3.5	500
	A	593	164.7	59		118.1	132	NK2-315M-4	81	3.4
	B	562	156.0	53		101.7	110	NK2-315S-4	80	3.3
	C	530	147.3	47		86.7	90	NK2-280M-4	79	3.2
SX250-450M/4		528	146.7	53	1480	94.1	110	NK2-315S-4	81	3.4	500
	A	502	139.3	48		81.7	90	NK2-280M-4	80	3.3
	B	475	132.0	43		70.3	75	NK2-280S-4	79	3.2
	C	449	124.7	38		60.0	75	NK2-280S-4	78	3.1
SX250-500/4		480	133.3	84	1480	140.8	160	NK2-315L1-4	78	2.9	540
	A	456	126.7	76		122.3	132	NK2-315M-4	77	2.8
	B	432	120.0	68		105.4	110	NK2-315S-4	76	2.7
	C	408	113.3	61		89.9	110	NK2-315S-4	75	2.6
SX250-550/4		648	180.0	106	1480	236.9	250	NK2-355M2-4	79	3.9	650
	A	616	171.0	96		205.7	220	NK2-355L1-4	78	3.8
	B	583	162.0	86		177.2	185	NK2-315L2-4	77	3.7
	C	551	153.0	77		151.2	160	NK2-315L1-4	76	3.6
SX250-550M/4		498	138.3	92	1480	162.1	200	NK2-315L2-4	77	3.7	650
	A	468	130.0	81		136.3	160	NK2-315L1-4	76	3.6
	B	438	121.7	71		113.2	132	NK2-315M-4	75	3.5
	C	408	113.3	62		92.7	110	NK2-315S-4	74	3.4
SX300-250/4		1008	280.0	11	1480	36.8	45	NK2-225M-4	82	5.8	470
	A	958	266.0	10		32.0	45	NK2-225M-4	81	5.6
	B	907	252.0	9		27.2	37	NK2-225S-4	81	5.4
	C	857	238.0	8		23.2	30	NK2-200L-4	80	5.3
SX300-250M/4		768	213.3	8	1480	20.4	30	NK2-200L-4	82	4.9	470
	A	730	202.7	7		17.7	30	NK2-200L-4	81	4.8
	B	691	192.0	6		15.1	22	NK2-180L-4	81	4.6
	C	653	181.3	6		12.8	18.5	NK2-180M-4	80	4.5
SX300-300/4		1020	283.3	17	1480	56.9	75	NK2-280S-4	83	4.1	420
	A	922	256.0	14		42.5	55	NK2-250M-4	82	3.9
	B	883	245.3	13		37.9	45	NK2-225M-4	81	3.7
	C	845	234.7	12		33.5	45	NK2-225M-4	80	3.6
SX300-300M/4		864	240.0	12	1480	34.4	45	NK2-225M-4	82	3.9	420
	A	821	228.0	11		29.9	37	NK2-225S-4	81	3.7
	B	778	216.0	10		25.7	37	NK2-225S-4	80	3.6
	C	734	204.0	9		22.0	30	NK2-200L-4	79	3.5
SX300-340/4		960	266.7	32	1480	99.6	110	NK2-315S-4	84	4.3	460
	A	912	253.3	29		86.4	90	NK2-280M-4	83	4.1
	B	864	240.0	26		74.4	90	NK2-280M-4	82	4.0
	C	816	226.7	23		63.4	75	NK2-280S-4	81	3.8
SX300-340M/4		816	226.7	26	1480	68.0	90	NK2-280M-4	85	3.4	460
	A	784	217.7	24		60.9	75	NK2-280S-4	84	3.3
	B	751	208.7	22		54.3	75	NK2-280S-4	83	3.2
	C	718	199.3	20		47.9	55	NK2-250M-4	82	3.1
SX300-440/4		1080	300.0	54	1480	186.9	200	NK2-315L2-4	85	4.9	590
	A	1026	285.0	49		162.2	185	NK2-315L2-4	84	4.7
	B	972	270.0	44		139.5	160	NK2-315L1-4	83	4.5
	C	918	255.0	39		119.0	132	NK2-315M-4	82	4.3
SX300-440M/4		984	273.3	49	1480	154.5	185	NK2-315L2-4	85	4.7	590
	A	935	259.7	44		134.1	160	NK2-315L1-4	84	4.5
	B	886	246.0	40		115.4	132	NK2-315M-4	83	4.3
	C	836	232.3	35		98.4	110	NK2-315S-4	82	4.1
SX300-520/4		960	266.7	84	1480	264.7	280	YX450-4	83	4.0	860
	A	912	253.3	76		229.7	250	NK2-355M2-4	82	3.9
	B	864	240.0	68		197.7	220	NK2-355L1-4	81	3.8
	C	816	226.7	61		168.6	200	NK2-315L2-4	80	3.7
SX300-520M/4		816	226.7	73	1480	197.9	220	NK2-355L1-4	82	3.8	860
	A	768	213.3	65		167.0	200	NK2-315L2-4	81	3.7
	B	718	199.3	56		138.0	160	NK2-315L1-4	80	3.6
	C	670	186.0	49		113.5	132	NK2-315M-4	79	3.5
SX300-670/4		960	266.7	146	1480	471.4	500	YX450-4	81	4.0	1110
	A	902	250.7	129		396.4	450	YX450-4	80	3.9
	B	845	234.7	113		329.4	400	YX450-4	79	3.8
	C	787	218.7	98		269.9	315	YX450-4	78	3.7
SX300-670M/4		816	226.7	129	1480	358.4	400	YX450-4	80	3.8	1110
	A	768	213.3	114		302.6	355	YX450-4	79	3.7
	B	718	199.3	100		250.0	280	YX450-4	78	3.6
	C	670	186.0	87		205.8	250	NK2-355M2-4	77	3.5
SX350-290/4		1536	426.7	13	1480	65.5	90	NK2-280M-4	83	5.8	660
	A	1459	405.3	12		56.9	75	NK2-280S-4	82	5.6
	B	1382	384.0	11		48.4	75	NK2-280S-4	82	5.4
	C	1306	362.7	9		41.2	55	NK2-250M-4	81	5.3
SX350-290M/4		1296	360.0	10	1480	42.5	55	NK2-250M-4	83	5.2	660
	A	1231	342.0	9		36.9	55	NK2-250M-4	82	5.1
	B	1166	324.0	8		31.4	45	NK2-225M-4	82	4.9
	C	1102	306.0	7		26.8	37	NK2-225S-4	81	4.8
SX350-340/4		1584	440.0	27	1480	138.7	160	NK2-315L1-4	84	5.6	630
	A	1505	418.0	24		120.3	160	NK2-315L1-4	83	5.4
	B	1426	396.0	22		103.6	132	NK2-315M-4	82	5.3
	C	1346	374.0	20		88.3	110	NK2-315S-4	81	5.2
SX350-340M/4		1344	373.3	17	1480	74.1	110	NK2-315S-4	84	5.3	630
	A	1277	354.7	15		64.3	90	NK2-280M-4	83	5.2
	B	1210	336.0	14		55.3	75	NK2-280S-4	82	5.0
	C	1142	317.3	12		47.2	75	NK2-280S-4	81	4.9
SX350-410/4		1536	426.7	45	1480	221.5	250	NK2-355M2-4	85	5.5	750
	A	1476	410.0	42		198.9	220	NK2-355L1-4	84	5.4
	B	1414	392.7	38		176.8	200	NK2-315L2-4	83	5.2
	C	1356	376.7	35		158.0	185	NK2-315L2-4	82	5.0
SX350-410M/4		1296	360.0	36	1480	149.5	185	NK2-315L2-4	85	4.7	750
	A	1244	345.7	33		133.9	160	NK2-315L1-4	84	4.5
	B	1193	331.3	30		119.4	132	NK2-315M-4	83	4.4
	C	1140	316.7	28		105.5	132	NK2-315M-4	82	4.3
SX350-500/4		1536	426.7	68	1480	334.7	355	YX450-4	85	5.3	900
	A	1459	405.3	61		290.4	315	YX450-4	84	5.1
	B	1382	384.0	55		249.9	280	YX450-4	83	4.9
	C	1306	362.7	49		213.1	250	NK2-355M2-4	82	4.7
SX350-500M/4		1296	360.0	61	1480	256.4	280	YX450-4	84	4.8	900
	A	1231	342.0	55		222.5	250	NK2-355M2-4	83	4.6
	B	1166	324.0	49		191.5	220	NK2-355L1-4	82	4.5
	C	1102	306.0	44		163.3	185	NK2-315L2-4	81	4.3
SX350-520/4		1416	393.3	81	1480	376.4	400	YX450-4	83	5.3	1130
	A	1345	373.7	73		326.7	355	YX450-4	82	5.1
	B	1274	354.0	66		281.2	315	YX450-4	81	4.9
	C	1204	334.3	59		239.9	280	YX450-4	80	4.7
SX350-520M/4		1200	333.3	72	1480	283.6	315	YX450-4	83	5.1	1130
	A	1140	316.7	65		246.1	280	YX450-4	82	4.9
	B	1080	300.0	58		211.8	250	NK2-355M2-4	81	4.8
	C	1020	283.3	52		180.7	200	NK2-315L2-4	80	4.7
SX350-610/4		1536	426.7	110	1480	554.5	630	YX450-4	83	4.9	1380
	A	1445	401.3	97		467.1	500	YX450-4	82	4.7
	B	1351	375.3	85		386.8	450	YX450-4	81	4.6
	C	1260	350.0	74		317.6	355	YX450-4	80	4.5
SX350-610M/4		1296	360.0	106	1480	450.9	500	YX450-4	83	4.8	1380
	A	1218	338.3	94		378.8	400	YX450-4	82	4.6
	B	1140	316.7	82		314.5	355	YX450-4	81	4.5
	C	1063	295.3	71		258.3	280	YX450-4	80	4.4
SX350-750/4		1536	426.7	198	1480	1035.6	1120	YX500-4	80	5.1	2020
	A	1445	401.3	175		872.8	900	YX500-4	79	4.9
	B	1351	375.3	153		723.1	800	YX500-4	78	4.7
	C	1260	350.0	133		593.9	710	YX500-4	77	4.6
SX350-750M/4		1296	360.0	169	1480	745.8	800	YX500-4	80	4.9	2020
	A	1218	338.3	149		626.9	710	YX500-4	79	4.7
	B	1140	316.7	131		520.6	560	YX450-4	78	4.6
	C	1063	295.3	114		427.8	500	YX450-4	77	4.5
SX350-830/4		1600	444.4	267	1480	1385.4	1800	YX630-4	84	5.8	2480
	A	1500	416.7	235		1155.3	1400	YX560-4	83	5.3
	B	1400	388.9	204		950.8	1120	YX500-4	82	4.8
	C	1300	361.1	176		770.6	900	YX500-4	81	4.4
SX400-320/4		2184	606.7	20	1480	145.1	185	NK2-315L2-4	82	6.9	950
	A	2075	576.3	18		126.0	160	NK2-315L1-4	81	6.7
	B	1966	546.0	16		107.1	132	NK2-315M-4	81	6.6
	C	1856	515.7	14		91.3	110	NK2-315S-4	80	6.5
SX400-320M/4		1860	516.7	15	1480	91.6	110	NK2-315S-4	83	6.6	950
	A	1767	490.8	14		79.5	110	NK2-315S-4	82	6.5
	B	1674	465.0	12		71.0	90	NK2-280M-4	78	6.4
	C	1581	439.2	11		57.6	75	NK2-280S-4	81	6.3
SX400-320G/4		1783	495.1	8	1480	50.5	90	NK2-280M-4	77	6.8	950
	A	1693	470.4	7		43.8	75	NK2-280S-4	76	6.7
	B	1604	445.6	6		37.3	75	NK2-280S-4	76	6.6
	C	1515	420.9	6		31.8	55	NK2-250M-4	75	6.5
SX400-360/4		2100	583.3	24	1480	171.6	220	NK2-355L1-4	80	6.5	950
	A	1994	554.0	22		148.9	200	NK2-315L2-4	79	6.3
	B	1890	525.0	19		128.3	185	NK2-315L2-4	78	6.2
	C	1784	495.7	17		109.4	160	NK2-315L1-4	77	6.1
SX400-400/4		2184	606.7	36	1480	261.2	280	YX450-4	82	6.4	930
	A	2096	582.3	33		233.9	250	NK2-355M2-4	81	6.2
	B	2009	558.0	30		208.3	220	NK2-355L1-4	80	6.1
	C	1922	534.0	28		184.9	200	NK2-315L2-4	79	5.9
SX400-400M/4		1860	516.7	28	1480	173.0	200	NK2-315L2-4	82	5.7	930
	A	1786	496.0	26		155.0	185	NK2-315L2-4	81	5.5
	B	1711	475.3	24		138.1	160	NK2-315L1-4	80	5.4
	C	1637	454.7	22		122.4	160	NK2-315L1-4	79	5.2
SX400-435/4		2100	583.3	46	1480	309.6	355	YX450-4	85	5.6	1000
	A	1994	554.0	41		268.4	315	YX450-4	84	5.4
	B	1890	525.0	37		231.1	280	YX450-4	83	5.3
	C	1784	495.7	33		196.9	220	NK2-355L1-4	82	5.2
SX400-470/4		2400	666.7	58	1480	440.9	500	YX450-4	86	5.8	1050
	A	2280	633.3	52		382.5	400	YX450-4	85	5.6
	B	2160	600.0	47		329.1	355	YX450-4	84	5.5
	C	2040	566.7	42		280.6	315	YX450-4	83	5.4
SX400-470M/4		1860	516.7	48	1480	279.6	315	YX450-4	87	5.4	1050
	A	1786	496.0	44		250.2	280	YX450-4	86	5.3
	B	1711	475.3	41		222.8	250	NK2-355M2-4	85	5.2
	C	1637	454.7	37		197.3	220	NK2-355L1-4	84	5.1
SX400-560/4		2400	666.7	86	1480	661.5	710	YX500-4	85	5.6	1360
	A	2280	633.3	78		573.9	630	YX450-4	84	5.4
	B	2160	600.0	70		493.8	560	YX450-4	83	5.3
	C	2040	566.7	62		421.1	450	YX450-4	82	5.2
SX400-560M/4		1860	516.7	78	1480	470.5	500	YX450-4	84	5.2	1360
	A	1768	491.0	70		408.7	450	YX450-4	83	5.0
	B	1674	465.0	63		351.4	355	YX450-4	82	4.9
	C	1582	439.3	56		300.0	315	YX450-4	81	4.8
SX400-700/4		2184	606.7	147	1480	1053.7	1120	YX500-4	83	5.4	1960
	A	2052	570.0	130		884.6	1000	YX500-4	82	5.2
	B	1922	534.0	114		736.4	900	YX500-4	81	5.0
	C	1793	498.0	99		604.7	710	YX500-4	80	4.7
SX400-700M/4		1860	516.7	130	1480	813.2	900	YX500-4	81	4.8	1960
	A	1748	485.7	115		683.9	710	YX500-4	80	4.6
	B	1637	454.7	101		568.2	630	YX450-4	79	4.4
	C	1525	423.7	87		465.6	560	YX450-4	78	4.2
SX450-780/4		1980	550.0	158	1480	1052.1	1120	YX500-4	81	5.2	2150
	A	1882	522.7	143		914.2	1000	YX500-4	80	5.0
	B	1782	495.0	128		786.4	900	YX500-4	79	4.9
	C	1682	467.3	114		670.3	710	YX500-4	78	4.8
SX500-370/4		3240	900.0	24	1480	255.2	315	YX450-4	83	7.8	1420
	A	3078	855.0	22		221.5	280	YX450-4	82	7.6
	B	2916	810.0	19		188.3	250	NK2-355M2-4	82	7.4
	C	2754	765.0	17		160.6	200	NK2-315L2-4	81	7.3
SX500-370M/4		2700	750.0	19	1480	170.4	200	NK2-315L2-4	82	7.0	1420
	A	2565	712.5	17		147.9	185	NK2-315L2-4	81	6.8
	B	2430	675.0	15		125.8	160	NK2-315L1-4	81	6.6
	C	2295	637.5	14		107.3	132	NK2-315M-4	80	6.5
SX500-370G/4		3105	862.5	13	1480	139.2	200	NK2-315L2-4	79	8.0	1420
	A	2950	819.4	12		120.9	185	NK2-315L2-4	78	7.8
	B	2916	810.0	11		116.8	160	NK2-315L1-4	78	7.7
	C	2754	765.0	10		99.6	132	NK2-315M-4	77	7.6
SX500-440/4		3480	966.7	37	1480	422.6	500	YX450-4	83	8.2	1440
	A	3306	918.3	33		366.8	450	YX450-4	82	8.0
	B	3132	870.0	30		315.7	400	YX450-4	81	7.8
	C	2958	821.7	27		269.3	315	YX450-4	80	7.7
SX500-440M/4		2700	750.0	30	1480	269.1	355	YX450-4	82	7.5	1440
	A	2592	720.0	28		241.0	315	YX450-4	81	7.3
	B	2484	690.0	25		214.8	280	YX450-4	80	7.2
	C	2376	660.0	23		190.3	250	NK2-355M2-4	79	7.1
SX500-510/4		2820	783.3	64	1480	552.4	710	YX500-4	89	6.7	1440
	A	2678	744.0	58		478.7	630	YX450-4	88	6.5
	B	2538	705.0	52		412.0	560	YX450-4	87	6.3
	C	2398	666.0	46		351.4	500	YX450-4	86	6.2
SX500-530/4		3240	900.0	64	1480	649.3	710	YX500-4	87	7.1	1650
	A	3110	864.0	59		581.1	630	YX450-4	86	6.9
	B	2981	828.0	54		517.5	560	YX450-4	85	6.8
	C	2851	792.0	50		458.3	500	YX450-4	84	6.7
SX500-530M/4		2700	750.0	57	1480	481.9	560	YX450-4	87	6.5	1650
	A	2592	720.0	53		431.3	500	YX450-4	86	6.3
	B	2484	690.0	48		384.1	450	YX450-4	85	6.2
	C	2376	660.0	44		340.1	400	YX450-4	84	6.0
SX500-630/4		3600	1000.0	122	1480	1359.6	1600	YX560-4	88	7.6	2150
	A	3420	950.0	110		1179.1	1250	YX560-4	87	7.4
	B	3240	900.0	99		1014.2	1120	YX500-4	86	7.3
	C	3060	850.0	88		864.4	1000	YX500-4	85	7.2
SX500-630M/4		2700	750.0	100	1480	865.3	1000	YX500-4	85	7.0	2150
	A	2566	712.7	90		751.3	900	YX500-4	84	6.8
	B	2430	675.0	81		646.0	710	YX500-4	83	6.7
	C	2296	637.7	72		551.3	630	YX450-4	82	6.6
SX500-770/4		3240	900.0	182	1480	1889.9	2000	YX630-4	85	6.0	2980
	A	3046	846.0	161		1588.4	1600	YX560-4	84	5.8
	B	2851	792.0	141		1318.9	1400	YX560-4	83	5.5
	C	2657	738.0	122		1080.1	1250	YX560-4	82	5.3
SX500-770M/4		2700	750.0	165	1480	1444.8	1600	YX560-4	84	5.3	2980
	A	2538	705.0	146		1214.5	1250	YX560-4	83	5.2
	B	2376	660.0	128		1008.6	1120	YX500-4	82	5.0
	C	2214.00	615.00	111		826.1	900	YX500-4	81	4.8
SX500-390/6		2700	750.0	12	980	103.9	132	NK2-315L2-6	85	4.5	1550
	A	2565	712.5	11		90.1	110	NK2-315L1-6	84	4.3
	B	2430	675.0	10		76.6	110	NK2-315L1-6	84	4.1
	C	2295	637.5	9		65.3	90	NK2-315M-6	83	4.0
SX500-390M/6		2076	576.7	9	980	62.9	90	NK2-315M-6	81	3.5	1550
	A	1972	547.8	8		54.6	75	NK2-315S-6	80	3.4
	B	1868	519.0	7		46.4	75	NK2-315S-6	80	3.2
	C	1765	490.2	7		39.6	55	NK2-280M-6	79	3.1
SX500-460/6		2436	676.7	22	980	173.9	200	NK2-355M3-6	84	4.4	1650
	A	2314	642.8	20		150.9	185	NK2-355M2-6	83	4.2
	B	2192	609.0	18		129.8	160	NK2-355M1-6	82	4.1
	C	2071	575.2	16		110.7	132	NK2-315L2-6	81	4.0
SX500-460M/6		2076	576.7	17	980	115.9	132	NK2-315L2-6	83	4.2	1650
	A	1992	553.3	16		103.6	132	NK2-315L2-6	82	4.0
	B	1910	530.7	14		92.5	110	NK2-315L1-6	81	3.9
	C	1826	507.3	13		81.9	90	NK2-315M-6	80	3.8
SX500-540/6		2436	676.7	30	980	226.3	250	NK2-355L2-6	88	4.4	1580
	A	2340	650.0	28		202.9	220	NK2-355L1-6	87	4.2
	B	2244	623.3	25		181.0	200	NK2-355M3-6	86	4.0
	C	2148	596.7	23		160.6	185	NK2-355M2-6	85	3.9
SX500-540M/6		2076	576.7	28	980	188.6	200	NK2-355M2-6	84	4.0	1580
	A	1992	553.3	26		168.6	185	NK2-355M2-6	83	3.8
	B	1910	530.7	24		150.5	160	NK2-355M2-6	82	3.6
	C	1826	507.3	22		133.2	160	NK2-355M2-6	81	3.5
SX500-660/6		2640	733.3	53	980	433.3	500	YX500-6	88	4.6	1800
	A	2508	696.7	48		375.7	400	YX450-6	87	4.4
	B	2376	660.0	43		323.2	355	YX450-6	86	4.2
	C	2244	623.3	38		275.5	315	YX450-6	85	4.1
SX500-660M/6		2340	650.0	47	980	344.5	355	YX450-6	87	4.3	1800
	A	2223	617.5	42		298.8	315	YX450-6	86	4.1
	B	2106	585.0	38		257.0	280	YX450-6	85	3.9
	C	1989	552.5	34		219.1	250	NK2-355L2-6	84	3.8
SX500-830/6		2436	676.7	97	980	757.5	800	YX500-6	85	4.0	2750
	A	2316	643.3	88		666.7	710	YX500-6	83	3.9
	B	2196	610.0	79		575.3	560	YX500-6	82	3.7
	C	2076	576.7	70		492.0	500	YX500-6	81	3.5
SX500-830M/6		2076	576.7	82	980	558.9	630	YX500-6	83	3.5	2750
	A	1973	548.0	74		479.6	500	YX500-6	83	3.4
	B	1868	519.0	66		412.4	450	YX450-6	82	3.2
	C	1764	490.0	59		351.3	400	YX450-6	81	3.1
SX500-950/6		3060	850.0	114	980	1118.3	1250	YX560-6	85	5.0	3950
	A	2856	793.3	99		931.2	1120	YX560-6	83	4.8
	B	2736	760.0	91		828.6	1000	YX560-6	82	4.6
	C	2616	726.7	83		733.3	900	YX500-6	81	4.4
SX500-950M/6		2736	760.0	113	980	1003.0	1120	YX560-6	84	4.6	3950
	A	2520	700.0	96		793.1	900	YX500-6	83	4.4
	B	2400	666.7	87		693.5	800	YX500-6	82	4.3
	C	2280	633.3	78		601.9	710	YX500-6	81	4.2
SX600-450/6		3840	1066.7	15	980	180.4	200	NK2-355M2-6	87	5.9	1780
	A	3648	1013.3	14		156.5	185	NK2-355M2-6	86	5.7
	B	3456	960.0	12		133.1	160	NK2-355M2-6	86	5.6
	C	3264	906.7	11		113.4	132	NK2-355M2-6	85	5.5

八、进口立式双吸离心泵材质配置

零件名称	材质配置
零件名称	HT250	QT500-7	铸钢	304	2Cr13	40Cr	45	双相钢
泵壳	●	○	○					○
叶轮	●		○	○				○
轴					○	●	○	○
轴套				●			○	○
密封环	●			○				○
轴承体	●

九、进口立式双吸离心泵说明

●为清水常规配置：为特殊介质或特殊工况的选配，高效节能双吸泵技术优势

●优势一高效率：引进国内外最优秀水力模型，采用CFD计算流体动力学分析方法，针对性地进行优化分析改进;性能指标超越行业水平，达到先进水平，最高效率突破92%。

●优势二低脉动：采用两半叶轮叶片交错布置结构，从而改变叶频(叶片通过泵体隔舌频率)，使得液流脉冲降低(约降低扬程的1%。~4%o)，液流更加平稳，效率更高、振动更小、运行更加平稳可靠。

●优势三低汽蚀余量：叶片进口边形状采用凸弧形优化设计，增加液流进口过流面积，降低进口流速，使得进口边压力增加，从而提高汽蚀余量。叶片头部采用翼型流线设计，使得液流冲击损失减少，漩涡减少，不但提高了最高点效率值，同时使得高效区更加宽广，压力分布均匀，汽蚀性能更佳。

●优势四高可靠性：高扬程泵采用双蜗壳设计，泵体、泵盖均设置加强筋，并采用ANSYS力学分析软件优化结构，泵壳具有很高的强度，轴承跨距短，轴加粗设计，使得转子运转时扰度小，稳定可靠。所有叶轮均做6.3级静平衡试验，整个转子按API610标准做2.5级动平衡试验。主轴采用不接触液体的全密封式设计，轴承部件设置唇形油封+V型密封圈组合密封结构，具有优秀的防漏油、防灰尘、防水、防湿气功能。

●优势五强适应性：

泵高效区宽，能更大范围满足用户要求;另外，我们采取一泵两轮的叶轮配置方式使得泵具有非常好的可选性，能绝大部分保证用户的工况点都能选到高效范围。

泵进、出口法兰可按照GB、ISO、DIN、BS、ANSI等标准加工。

泵壳流道：可进行超滑节能涂层、耐磨耐腐涂层等选择。输送高温介质可采用CPS-R型结构，泵采用中心支撑、水冷轴承体。

轴封系统：可实现填料密封、单端面密封互换，也可按用户要求配置集装式机封、双端面机封以及配置AP1682标准的冲洗系统。

轴承润滑系统：可采用脂润滑或稀油润滑供灵活选择。

轴承冷却系统：可根据介质温度高低选择自然冷却或水冷却轴承体。

远程监控：轴承体设置测温、测振等监测接口，可方便实现远程监控。

●优势六高通用化：除泵体、泵盖、叶轮等少数零件外，其余均采用模块化设计，实现了零件的标准化，同轴系的轴承部件、密封部件、轴套、挡套等均可实现互换，方便实现泵的量产。

进口卧式单吸离心泵进口卧式双吸离心泵

If you are going to use a passage
If you are going to use a passage
Sure there isn't anything embarrassing
Sure there isn't anything embarrassing

How We Solve This Project

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostruds exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit

Thinking

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered

Research

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered

Wireframe

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered

Design

There are many variations of passagai of Lorem Ipsum available but the ma jority have suffered

进口立式双吸离心泵

一、进口立式双吸离心泵产品概述

二、进口立式双吸离心泵选型参数

三、进口立式双吸离心泵特点

四、进口立式双吸离心泵结构图

五、进口立式双吸离心泵主要材料表

六、进口立式双吸离心泵性能参数

八、进口立式双吸离心泵材质配置

九、进口立式双吸离心泵说明

How We Solve This Project

Thinking

Research

Wireframe

Design

Get Started Instantly!

Request a Call Back Now

公司介绍

主营产品

行业新闻

portfolio details

进口立式双吸离心泵

一、进口立式双吸离心泵产品概述

二、进口立式双吸离心泵选型参数

三、进口立式双吸离心泵特点

四、进口立式双吸离心泵结构图

五、进口立式双吸离心泵主要材料表

六、进口立式双吸离心泵性能参数

八、进口立式双吸离心泵材质配置

九、进口立式双吸离心泵说明

How We Solve This Project

Thinking

Research

Wireframe

Design

Get Started Instantly!

Request a Call Back Now

公司介绍

主营产品

行业新闻

Newsletter
